Sandvik Coromant

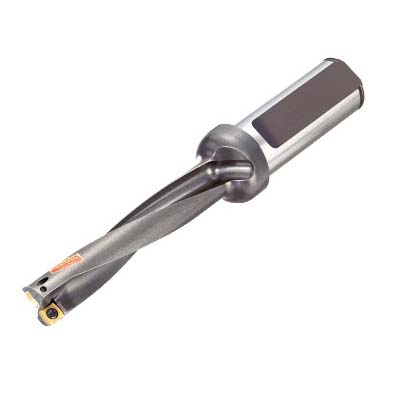

Sandvik Coromant 5962274 CoroDrill® 881 Insert Drill, 0.6692 in Drill, 0.7874 in Shank, 6.0236 in AOL, 3.3464 in D Maximum Drill, 5
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5962274 CoroDrill® 881 Insert Drill, 0.6692 in Drill, 0.7874 in Shank, 6.0236 in AOL, 3.3464 in D Maximum Drill, 5
SKU1254493
MFGR #5962274
Your Cost: $779.54/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.6692 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 3.3464 in Maximum Drill Depth, 6.0236 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM), 3.3464 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 881, 0.6692 in Drill, 0.7874 in Shank Dia, Cylinder Shank, 3.3464 in Maximum Drill Depth, 6.0236 in Overall Length, 5 Drill Depth by Dia Ratio, Insert Compatibility: 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM), 3.3464 in Flute Length
Catalog Number 5962274 Country of Origin SE Drill Depth by Diameter Ratio 5 Gage Insert CoroDrill® 881 Gross Weight Per Pack 0.4400 lb Number of Drill Inserts 20 mm Overall Length 6.0236 in Series CoroDrill® 881 Type 17 mm UPC 11 69826255011 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 85 mm Drill Size 0.6692 in Flute Length 3.3464 in Insert Compatibility 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM) Maximum Drill Depth 3.3464 in Shank Diameter 0.7874 in Shank Length CoroDrill® 881 Shank Type Cylinder 102.7276 mm L functional 20 mm Dia body 50 mm L clamping 0.2724 mm L point 13500 r/min -0.1 mm to 0.4 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute Right hand helix flute 0 deg rake orthogonal 18.2 mm H shank 0 deg inclination, 2 flutes 78 deg cutting edge 20 life cycle state 88 mm L steel body 881..Lxx-05 tool style
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 5962274 |
| Country of Origin | SE |
| Drill Depth by Diameter Ratio | 5 |
| Gage Insert | CoroDrill® 881 |
| Gross Weight Per Pack | 0.4400 lb |
| Number of Drill Inserts | 20 mm |
| Overall Length | 6.0236 in |
| Series | CoroDrill® 881 |
| Type | 17 mm |
| UPC 11 | 69826255011 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 85 mm |
| Drill Size | 0.6692 in |
| Flute Length | 3.3464 in |
| Insert Compatibility | 881-02 02 04M-C-GM1 (MIIDM) and 881-02 02 04M-P-GM1 (MIIDM) |
| Maximum Drill Depth | 3.3464 in |
| Shank Diameter | 0.7874 in |
| Shank Length | CoroDrill® 881 |
| Shank Type | Cylinder |
| 102.7276 mm L functional |
| 20 mm Dia body |
| 50 mm L clamping |
| 0.2724 mm L point |
| 13500 r/min |
| -0.1 mm to 0.4 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| Right hand helix flute |
| 0 deg rake orthogonal |
| 18.2 mm H shank |
| 0 deg inclination, 2 flutes |
| 78 deg cutting edge |
| 20 life cycle state |
| 88 mm L steel body |
| 881..Lxx-05 tool style |
