- Features
20 life cycle state |
Cylindrical shank with 3 flats adaptive interface |
-15 deg clearance |
15.875 mm Dia body |
Axial concentric coolant entry |
10 bar coolant |
40 - 60 deg insert screw, rail bottom clamping interface |
Axial inclined coolant exit |
-15 deg orthogonal rake |
14.3002 mm H shank |
-2 deg inclination |
203.2 mm L functional |
26.67 - 47.625 mm overhang |
2 deg thread helix correction |
3.0 Nm torque |
266R/LKF style |
11.9888 mm W functional |

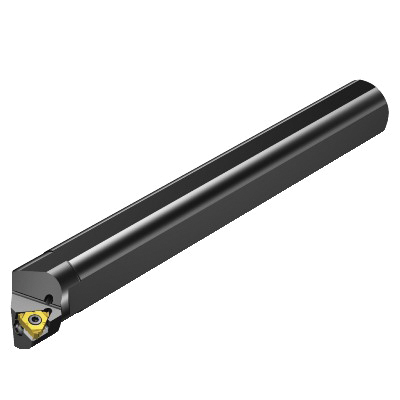

ANSI Code: 266LKF-D10-3 |
ISO Code: 266LKF-D10-3 |
