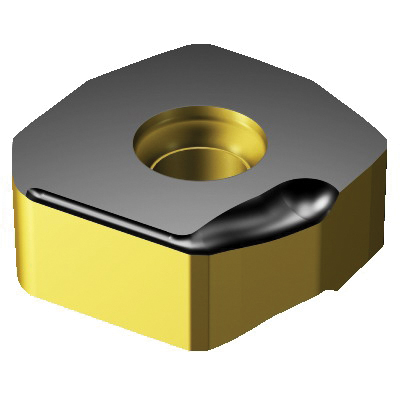

Sandvik Coromant 5960200 CoroMill® 365 Milling Insert, N365-1505ZNE-KW8 3220, N365-KW8 Insert, Carbide, 3220, N365-1505ZNE-KW8 3220
Custom_Product_Images_Illustration
Sandvik Coromant 5960200 CoroMill® 365 Milling Insert, N365-1505ZNE-KW8 3220, N365-KW8 Insert, Carbide, 3220, N365-1505ZNE-KW8 3220
SKU1237652
MFGR #5960200
Your Cost: $44.07/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 365, N365-KW8 Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, KW8 Chipbreaker, 0.0078 in Corner Radius, 20 deg Rake, 0.1811 in Hole Dia, Manufacturer's Grade: 3220, ANSI Code: N365-1505ZNE-KW8 3220, ISO Code: N365-1505ZNE-KW8 3220, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 365, N365-KW8 Insert, 0.5905 in Inscribed Circle, 0.2228 in Thickness, KW8 Chipbreaker, 0.0078 in Corner Radius, 20 deg Rake, 0.1811 in Hole Dia, Manufacturer's Grade: 3220, ANSI Code: N365-1505ZNE-KW8 3220, ISO Code: N365-1505ZNE-KW8 3220, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number N365-1505ZNE-KW8 3220 ANSI Code N365-1505ZNE-KW8 3220 Catalog Number 5960200 Corner Radius 0.008 in Country of Origin SE Finish MTCVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3800 lb Hand of Insert Neutral Hole Diameter 0.1811 in ISO Code N365-1505ZNE-KW8 3220 Item Group 350 Lead Angle 65 ° Material Application Cast Iron Series CoroMill® 365 Thickness 0.223 in UPC 11 69826254433 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KW8 Inscribed Circle 0.591 in Insert Size 1505 Insert Style N365-KW8 Manufacturer's Grade 3220 Material Carbide Material Grade K Shape Rectangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 0.9 mm L x 0.75 mm W corner chamfer 8 mm L wiper edge 431 mm wiper edge radius 65 deg major cutting edge 35 deg corner chamfer 6.4 mm L effective cutting edge 1-side cutting 20 life cycle state 1 corner S cutting edge condition 1 cutting edge Internal grooving shape
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | N365-1505ZNE-KW8 3220 |
| ANSI Code | N365-1505ZNE-KW8 3220 |
| Catalog Number | 5960200 |
| Corner Radius | 0.008 in |
| Country of Origin | SE |
| Finish | MTCVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3800 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1811 in |
| ISO Code | N365-1505ZNE-KW8 3220 |
| Item Group | 350 |
| Lead Angle | 65 ° |
| Material Application | Cast Iron |
| Series | CoroMill® 365 |
| Thickness | 0.223 in |
| UPC 11 | 69826254433 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KW8 |
| Inscribed Circle | 0.591 in |
| Insert Size | 1505 |
| Insert Style | N365-KW8 |
| Manufacturer's Grade | 3220 |
| Material | Carbide |
| Material Grade | K |
| Shape | Rectangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 0.9 mm L x 0.75 mm W corner chamfer |
| 8 mm L wiper edge |
| 431 mm wiper edge radius |
| 65 deg major cutting edge |
| 35 deg corner chamfer |
| 6.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 1 corner |
| S cutting edge condition |
| 1 cutting edge |
| Internal grooving shape |
