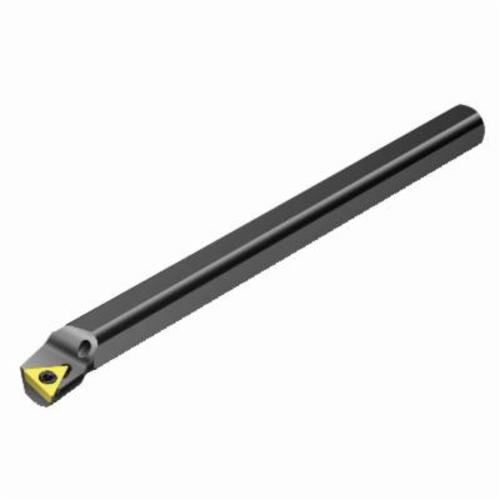

Sandvik Coromant 5937365 CoroTurn® 107 Indexable Boring Bar, 0.7874 in Min, 7.874 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5937365 CoroTurn® 107 Indexable Boring Bar, 0.7874 in Min, 7.874 in OAL, Left Hand
SKU1247776
MFGR #5937365
Your Cost: $238.75/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.7874 in Minimum Bore Dia, 2.5196 in Maximum Bore Depth, 7.874 in Overall Length, 0.6299 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 0.433 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.7874 in Minimum Bore Dia, 2.5196 in Maximum Bore Depth, 7.874 in Overall Length, 0.6299 in Shank Dia, Cylindrical With 3-Flats Shank, Left Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 0.433 in Width Offset, Steel
Alternate Catalog Number A16R-STFCL 11 Catalog Number 5937365 Country of Origin IN Gross Weight Per Pack 0.6200 lb Insert Screw 5763193 Insert Thickness 0.094 in Item Group 210 Overall Length 7.874 in Series CoroTurn® 107 Shank Type Cylindrical with 3-Flats Toolholder Style A..STFCL UPC 11 69826254116 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility TCMT 11 02 04 Insert Shape Triangle Material Steel Maximum Bore Depth 2.52 in Minimum Bore Diameter 0.787 in Shank Diameter 0.63 in Through Coolant Yes Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 15 mm H shank 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 91 deg cutting edge -4.4975 deg inclination 20 life cycle state Coolant through -1 deg lead 0 deg maximum ramping 0.9 Nm torque 40 - 60 deg insert screw clamping 1/4 in insert seat ANSI Code: A16R-STFCL 11 ISO Code: A16R-STFCL 11
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
Alternate Catalog Number | A16R-STFCL 11 |
Catalog Number | 5937365 |
Country of Origin | IN |
Gross Weight Per Pack | 0.6200 lb |
Insert Screw | 5763193 |
Insert Thickness | 0.094 in |
Item Group | 210 |
Overall Length | 7.874 in |
Series | CoroTurn® 107 |
Shank Type | Cylindrical with 3-Flats |
Toolholder Style | A..STFCL |
UPC 11 | 69826254116 |
Stock Status | NONSTOCK |
Brand | Sandvik Coromant |
Manufacturer | Sandvik Coromant |
Hand of Holder | Left |
Insert Compatibility | TCMT 11 02 04 |
Insert Shape | Triangle |
Material | Steel |
Maximum Bore Depth | 2.52 in |
Minimum Bore Diameter | 0.787 in |
Shank Diameter | 0.63 in |
Through Coolant | Yes |
Screw clamp design of CoroTurn® 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain|Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control|When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107|The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish|Wiper geometries available for high feeds and high quality surface finish|Ground, super sharp insert offer for exceptional surface finish|Holders with conventional and precision coolant design |
0 deg body workpiece side |
Axial concentric coolant entry |
Axial inclined coolant exit |
15 mm H shank |
0 deg orthogonal rake |
145.038 lbf/sq-in coolant pressure |
91 deg cutting edge |
-4.4975 deg inclination |
20 life cycle state |
Coolant through |
-1 deg lead |
0 deg maximum ramping |
0.9 Nm torque |
40 - 60 deg insert screw clamping |
1/4 in insert seat |
ANSI Code: A16R-STFCL 11 |
ISO Code: A16R-STFCL 11 |
