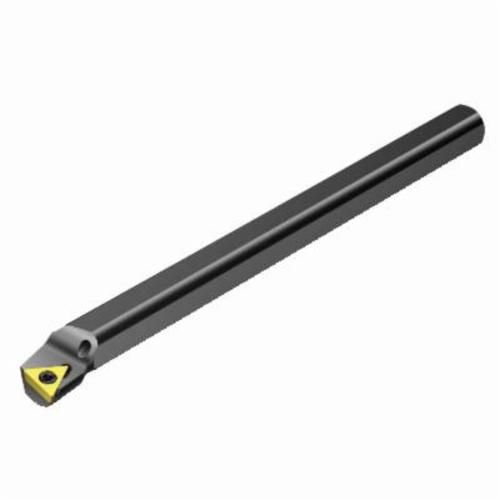

Sandvik Coromant 5937342 CoroTurn® 107 Indexable Boring Bar, 1/2 in Min, 6 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5937342 CoroTurn® 107 Indexable Boring Bar, 1/2 in Min, 6 in OAL, Right Hand
SKU1254117
MFGR #5937342
Your Cost: $238.75/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1/2 in Minimum Bore Dia, 1-1/2 in Maximum Bore Depth, 6 in Overall Length, 3/8 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 1/4 in Width Offset, Steel
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 1/2 in Minimum Bore Dia, 1-1/2 in Maximum Bore Depth, 6 in Overall Length, 3/8 in Shank Dia, Cylindrical With 3-Flats Shank, Right Hand Cutting, Insert Compatibility: TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN), Triangle Insert, 1/4 in Width Offset, Steel
Alternate Catalog Number A06M-STFCR 2 Catalog Number 5937342 Country of Origin US Cutting Direction Right Hand Finish Indexable Gross Weight Per Pack 0.1400 lb Inscribed Circle 1/4 Insert Screw 152.4 mm Insert Thickness 6.35 mm Item Group 210 Maximum Bore Diameter 38.1 mm Overall Length 6 in Series CoroTurn® 107 Shank Type Cylindrical With 3-Flats Toolholder Type A..STFCR UPC 11 69826254103 Width Offset 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Right Insert Compatibility TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN) Insert Shape Triangle Material Steel Maximum Bore Depth 1-1/2 in Minimum Bore Diameter 1/2 in Shank Diameter 3/8 in Type Indexable 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 8.54 mm H shank 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 91 deg cutting edge -10.0749 deg inclination 20 life cycle state Coolant through -1 deg lead 0 deg maximum ramping 0.9 Nm torque 40 - 60 deg insert screw clamping 1/4 in insert seat ANSI Code: A06M-STFCR 2 ISO Code: A06M-STFCR 2
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A06M-STFCR 2 |
| Catalog Number | 5937342 |
| Country of Origin | US |
| Cutting Direction | Right Hand |
| Finish | Indexable |
| Gross Weight Per Pack | 0.1400 lb |
| Inscribed Circle | 1/4 |
| Insert Screw | 152.4 mm |
| Insert Thickness | 6.35 mm |
| Item Group | 210 |
| Maximum Bore Diameter | 38.1 mm |
| Overall Length | 6 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical With 3-Flats |
| Toolholder Type | A..STFCR |
| UPC 11 | 69826254103 |
| Width Offset | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Right |
| Insert Compatibility | TCMT 11 02 04 (MIIDM), TCMT 2(1.5)1 (MIIDN) |
| Insert Shape | Triangle |
| Material | Steel |
| Maximum Bore Depth | 1-1/2 in |
| Minimum Bore Diameter | 1/2 in |
| Shank Diameter | 3/8 in |
| Type | Indexable |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 8.54 mm H shank |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 91 deg cutting edge |
| -10.0749 deg inclination |
| 20 life cycle state |
| Coolant through |
| -1 deg lead |
| 0 deg maximum ramping |
| 0.9 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/4 in insert seat |
| ANSI Code: A06M-STFCR 2 |
| ISO Code: A06M-STFCR 2 |
