Sandvik Coromant

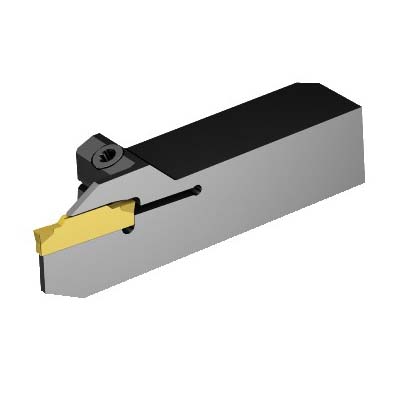

Sandvik Coromant 5926280 CoroCut® 1-2 QS Indexable Shank Tool, N123D2-0150-0002-CM insert, D Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5926280 CoroCut® 1-2 QS Indexable Shank Tool, N123D2-0150-0002-CM insert, D Insert Seat, Left Hand
SKU1236443
MFGR #5926280
Your Cost: $262.41/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123D2-0150-0002-CM, QS-LF123D032-10B, 2.7559 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, D Insert Seat, Left Hand Cutting, 0.32 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123D2-0150-0002-CM, QS-LF123D032-10B, 2.7559 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, D Insert Seat, Left Hand Cutting, 0.32 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-LF123D032-10B Catalog Number 5926280 Country of Origin SE Gross Weight Per Pack 0.3100 lb Head Length 0.777 in Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..B UPC 11 69826253169 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123D2-0150-0002-CM Insert Seat Size D Maximum Depth of Cut 0.32 in Overall Length 2.756 in Screw Type Countersunk Head Shank Size 5/8 in H x 5/8 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 16.256 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 19.728 mm minimum overhang 2.5 Nm torque 1 insert required 0 deg inclination 0 deg rake ANSI Code: QS-LF123D032-10B ISO Code: QS-LF123D032-10B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123D032-10B |
| Catalog Number | 5926280 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.3100 lb |
| Head Length | 0.777 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..B |
| UPC 11 | 69826253169 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123D2-0150-0002-CM |
| Insert Seat Size | D |
| Maximum Depth of Cut | 0.32 in |
| Overall Length | 2.756 in |
| Screw Type | Countersunk Head |
| Shank Size | 5/8 in H x 5/8 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 16.256 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 19.728 mm minimum overhang |
| 2.5 Nm torque |
| 1 insert required |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-LF123D032-10B |
| ISO Code: QS-LF123D032-10B |
