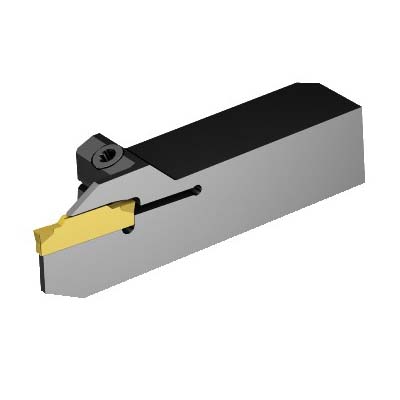

Sandvik Coromant 5926278 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5926278 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
SKU1170952
MFGR #5926278
Your Cost: $314.89/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F059-08B, 2.7559 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, F Insert Seat, Right Hand Cutting, 0.59 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F059-08B, 2.7559 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, F Insert Seat, Right Hand Cutting, 0.59 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-RF123F059-08B Catalog Number 5926278 Country of Origin SE Gross Weight Per Pack 0.2000 lb Head Length 1.047 in Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..B UPC 11 69826253188 UPC 12 69826253188 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 0.59 in Overall Length 2.756 in Screw Type Countersunk Head Shank Size 1/2 in H x 1/2 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 29.972 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 26.586 mm minimum overhang 2.5 Nm torque 1 insert required 0 deg inclination 0 deg rake ANSI Code: QS-RF123F059-08B ISO Code: QS-RF123F059-08B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123F059-08B |
| Catalog Number | 5926278 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.2000 lb |
| Head Length | 1.047 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..B |
| UPC 11 | 69826253188 |
| UPC 12 | 69826253188 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 0.59 in |
| Overall Length | 2.756 in |
| Screw Type | Countersunk Head |
| Shank Size | 1/2 in H x 1/2 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 29.972 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 26.586 mm minimum overhang |
| 2.5 Nm torque |
| 1 insert required |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-RF123F059-08B |
| ISO Code: QS-RF123F059-08B |
