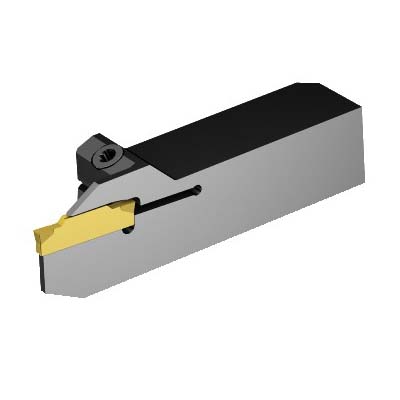

Sandvik Coromant 5926248 CoroCut® 1-2 QS Indexable Shank Tool, N123D2-0150-0002-CM insert, D Insert Seat, Left Hand
Indexable Grooving/Cut-Off Tool Holders
1237527
MFG #: 5926248
Sandvik Coromant
262.41000
/ ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123D2-0150-0002-CM, QS-LF123D08-1616B, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, D Insert Seat, Left Hand Cutting, 0.3149 in Maximum Depth of Cut, Steel
- Features
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 16 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 19.6 mm minimum overhang |
| 2.5 Nm torque |
| 1 insert required |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-LF123D08-1616B |
| ISO Code: QS-LF123D08-1616B |
