Sandvik Coromant
Sandvik Coromant 5926246 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand

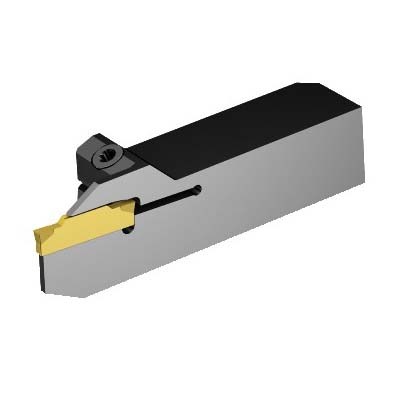

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5926246 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
SKU1237503
MFGR #5926246
Your Cost: $314.89/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F15-1212B, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, F Insert Seat, Right Hand Cutting, 0.5905 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-RF123F15-1212B, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, F Insert Seat, Right Hand Cutting, 0.5905 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-RF123F15-1212B Catalog Number 5926246 Country of Origin SE Gross Weight Per Pack 0.1800 lb Head Length 20 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..B UPC 11 69826253190 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 15 mm Overall Length 70 mm Screw Type Countersunk Head Shank Size 12 mm H x 12 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 30 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 20 mm minimum overhang 2.5 Nm torque 1 insert required 0 deg inclination 0 deg rake ANSI Code: QS-RF123F15-1212B ISO Code: QS-RF123F15-1212B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123F15-1212B |
| Catalog Number | 5926246 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.1800 lb |
| Head Length | 20 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..B |
| UPC 11 | 69826253190 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 15 mm |
| Overall Length | 70 mm |
| Screw Type | Countersunk Head |
| Shank Size | 12 mm H x 12 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 30 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 20 mm minimum overhang |
| 2.5 Nm torque |
| 1 insert required |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-RF123F15-1212B |
| ISO Code: QS-RF123F15-1212B |
