- Features
65 mm D maximum cutting |
20 life cycle state |
90 deg body workpiece side |
Axial concentric coolant entry |
80 bar coolant |
500 mm OD minimum axial groove |
Axial inclined focused coolant exit with nozzle |
90 deg cutting edge |
0 deg rake orthogonal |
16.5 mm L functional |
71 mm W functional |
125 mm Dia minimum bore |
9 mm length to cutting item reference point |
R insert seat size |
6.5 Nm torque |
0 deg inclination |
9 mm maximum overhang |

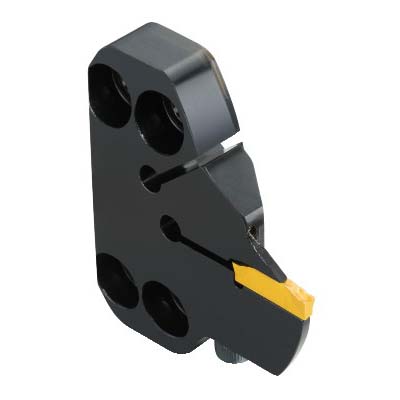

SL70-R/L123..A-HP tool style |
70 mm Dia connection |
24.3 mm L overa |
