Sandvik Coromant
Sandvik Coromant 5924602 CoroMill® 170 Gear Milling Insert, 170-12-240740E-PRMN 4240, L-Rectangle, 170..E-PRMN Insert, Carbide, 4240, 170-12-240740E-PRMN 4240

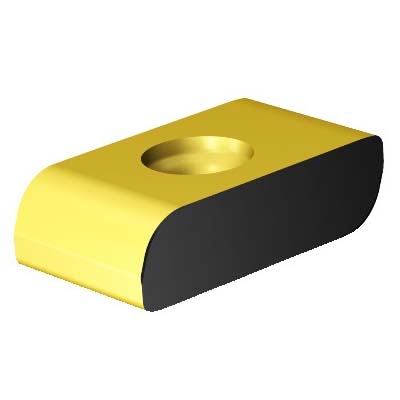

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5924602 CoroMill® 170 Gear Milling Insert, 170-12-240740E-PRMN 4240, L-Rectangle, 170..E-PRMN Insert, Carbide, 4240, 170-12-240740E-PRMN 4240
SKU1227865
MFGR #5924602
Your Cost: $46.33/ea
List: Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 170..E-PRMN Insert, L-Rectangle, 0.551 in Inscribed Circle, 0.5511 in Thickness, 0.2755 in Width, 0.9448 in Length, PRHN Chipbreaker, 0.1574 in Corner Radius, 0 deg Rake, 0.2362 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: 170-12-240740E-PRMN 4240, ISO Code: 170-12-240740E-PRMN 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 170..E-PRMN Insert, L-Rectangle, 0.551 in Inscribed Circle, 0.5511 in Thickness, 0.2755 in Width, 0.9448 in Length, PRHN Chipbreaker, 0.1574 in Corner Radius, 0 deg Rake, 0.2362 in Hole Dia, Manufacturer's Grade: 4240, ANSI Code: 170-12-240740E-PRMN 4240, ISO Code: 170-12-240740E-PRMN 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code 170-12-240740E-PRMN 4240 Catalog Number 5924602 Corner Radius 0.1574 in Finish MTCVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Neutral Hole Diameter 0.2362 in ISO Code 170-12-240740E-PRMN 4240 Lead Angle 14 mm Length 0.9448 in Series CoroMill® 170 Thickness 0.5511 in Type 24 mm UPC 11 69826253707 Warranty L - Rectangle Width 0.2755 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PRHN Inscribed Circle 0.551 in Insert Size Neutral Insert Style 170..E-PRMN Manufacturer's Grade 4240 Material Carbide Material Grade P Rake 0 deg Shape L-Rectangle 0 deg clearance 24 mm L effective cutting edge 2-side cutting 40 life cycle state 2 corner 4 cutting edge Screw clamp mounting
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 170-12-240740E-PRMN 4240 |
| Catalog Number | 5924602 |
| Corner Radius | 0.1574 in |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2362 in |
| ISO Code | 170-12-240740E-PRMN 4240 |
| Lead Angle | 14 mm |
| Length | 0.9448 in |
| Series | CoroMill® 170 |
| Thickness | 0.5511 in |
| Type | 24 mm |
| UPC 11 | 69826253707 |
| Warranty | L - Rectangle |
| Width | 0.2755 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PRHN |
| Inscribed Circle | 0.551 in |
| Insert Size | Neutral |
| Insert Style | 170..E-PRMN |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| Material Grade | P |
| Rake | 0 deg |
| Shape | L-Rectangle |
| 0 deg clearance |
| 24 mm L effective cutting edge |
| 2-side cutting |
| 40 life cycle state |
| 2 corner |
| 4 cutting edge |
| Screw clamp mounting |
