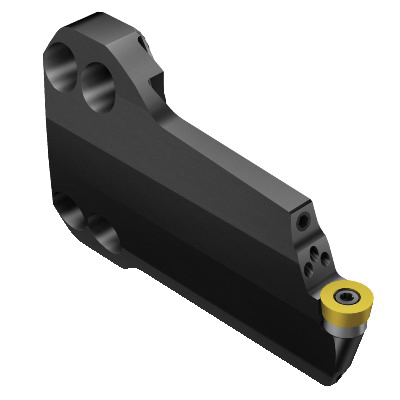

Sandvik Coromant 5923430 CoroTurn® 107 Turning Head, 0.669 in, 0.9761 in OAL, Left Hand, inch RCMT 120400 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5923430 CoroTurn® 107 Turning Head, 0.669 in, 0.9761 in OAL, Left Hand, inch RCMT 120400 Insert
SKU1250617
MFGR #5923430
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 0.669 in Head Length/Projection, 0.9761 in Overall Length, R-Round Insert, Insert Compatibility: inch RCMT 120400, Left Hand Cutting, 2.0866 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 0.669 in Head Length/Projection, 0.9761 in Overall Length, R-Round Insert, Insert Compatibility: inch RCMT 120400, Left Hand Cutting, 2.0866 in Center to Cutting Edge, Steel
Alternate Catalog Number SL70A-SRDCL-125-4HP Catalog Number 5923430 Center to Cutting Height 0 Country of Origin IN Finish CoroTurn® 107 Gross Weight Per Pack 0.5500 lb Head Length|Projection 0.669 in Insert Style R-Round Item Group 410 Material Steel Overall Length 0.9761 in Series CoroTurn® 107 Type 53 mm UPC 11 69826253473 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 2.0866 in Cutting Direction Left Hand Insert Compatibility inch RCMT 120400 Insert Holding Method Steel Number of Inserts RCMT 12 04 00 System Size 70 20 life cycle state Axial concentric coolant entry Axial inclined coolant exit 70 connection size 90 deg body workpiece side ISO: inch RCMT 120400 interface identifiers 30 bar coolant 120 - 260 mm Dia minimum bore 0 deg rake orthogonal 0 deg inclination 31.75 mm D cutting 16.993 mm maximum overhang RCMT 12 04 00, RCMT 43 master insert 3 Nm torque 10.643 mm length to cutting item reference point 70 mm W clamping 12 mm insert seat ANSI Code: SL70A-SRDCL-125-4HP ISO Code: SL70A-SRDCL-125-4HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL70A-SRDCL-125-4HP |
| Catalog Number | 5923430 |
| Center to Cutting Height | 0 |
| Country of Origin | IN |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 0.5500 lb |
| Head Length|Projection | 0.669 in |
| Insert Style | R-Round |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 0.9761 in |
| Series | CoroTurn® 107 |
| Type | 53 mm |
| UPC 11 | 69826253473 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 2.0866 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | inch RCMT 120400 |
| Insert Holding Method | Steel |
| Number of Inserts | RCMT 12 04 00 |
| System Size | 70 |
| 20 life cycle state |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 70 connection size |
| 90 deg body workpiece side |
| ISO: inch RCMT 120400 interface identifiers |
| 30 bar coolant |
| 120 - 260 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 0 deg inclination |
| 31.75 mm D cutting |
| 16.993 mm maximum overhang |
| RCMT 12 04 00, RCMT 43 master insert |
| 3 Nm torque |
| 10.643 mm length to cutting item reference point |
| 70 mm W clamping |
| 12 mm insert seat |
| ANSI Code: SL70A-SRDCL-125-4HP |
| ISO Code: SL70A-SRDCL-125-4HP |
