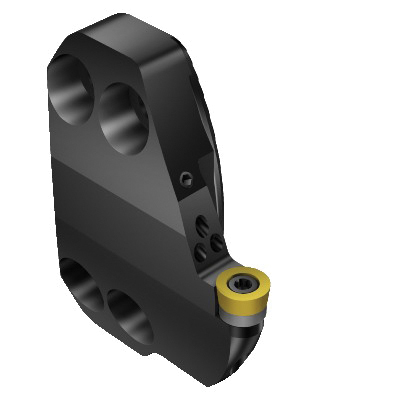

Sandvik Coromant 5923426 CoroTurn® 107 Turning Head, 0.7086 in, 1.0157 in OAL, Left Hand, Metric RCMT 1204M0 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5923426 CoroTurn® 107 Turning Head, 0.7086 in, 1.0157 in OAL, Left Hand, Metric RCMT 1204M0 Insert
SKU1238806
MFGR #5923426
Your Cost: $819.49/ea
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 0.7086 in Head Length/Projection, 1.0157 in Overall Length, R-Round Insert, Insert Compatibility: Metric RCMT 1204M0, Left Hand Cutting, 2.7952 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 0.7086 in Head Length/Projection, 1.0157 in Overall Length, R-Round Insert, Insert Compatibility: Metric RCMT 1204M0, Left Hand Cutting, 2.7952 in Center to Cutting Edge, Steel
Alternate Catalog Number SL70-SRDCL-50-12HP Catalog Number 5923426 Country of Origin IN Gross Weight Per Pack 0.9300 lb Head Length|Projection 18 mm Insert Style RCMT Item Group 410 Material Steel Overall Length 25.8 mm Series CoroTurn® 107 UPC 11 69826253469 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 71 mm Cutting Direction Left Hand Insert Compatibility RCMT 1204M0 Internal or External Internal System Size 70 mm Unobstructed chip flow|Excellent chip control|Exceptional surface finish Axial concentric coolant entry Axial inclined coolant exit 70 connection size 90 deg body workpiece side ISO: metric RCMT 1204M0 interface identifiers 30 bar coolant 120 - 260 mm Dia minimum bore 0 deg rake orthogonal 0 deg inclination 50 mm D cutting 18 mm maximum overhang RCMT 12 04 M0 master insert 3 Nm torque 12 mm length to cutting item reference point 70 mm W clamping 12 mm insert seat ANSI Code: SL70-SRDCL-50-12HP ISO Code: SL70-SRDCL-50-12HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL70-SRDCL-50-12HP |
| Catalog Number | 5923426 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.9300 lb |
| Head Length|Projection | 18 mm |
| Insert Style | RCMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 25.8 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826253469 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 71 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | RCMT 1204M0 |
| Internal or External | Internal |
| System Size | 70 mm |
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 70 connection size |
| 90 deg body workpiece side |
| ISO: metric RCMT 1204M0 interface identifiers |
| 30 bar coolant |
| 120 - 260 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 0 deg inclination |
| 50 mm D cutting |
| 18 mm maximum overhang |
| RCMT 12 04 M0 master insert |
| 3 Nm torque |
| 12 mm length to cutting item reference point |
| 70 mm W clamping |
| 12 mm insert seat |
| ANSI Code: SL70-SRDCL-50-12HP |
| ISO Code: SL70-SRDCL-50-12HP |
