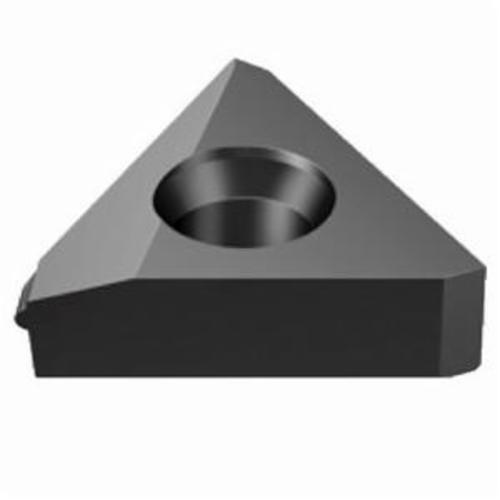

Sandvik Coromant 5919022 CoroMill® 325 Thread Whirling Insert, 325R16-175HAF01 1105, T-Triangle, 325R..HA Insert, Carbide, 1105, 325R16-175HAF01 1105
Custom_Product_Images_Illustration
Sandvik Coromant 5919022 CoroMill® 325 Thread Whirling Insert, 325R16-175HAF01 1105, T-Triangle, 325R..HA Insert, Carbide, 1105, 325R16-175HAF01 1105
SKU1231746
MFGR #5919022
Your Cost: $122.79/ea
List: Sandvik Coromant Thread Whirling Insert, Series: CoroMill® 325, 325R..HA Insert, T-Triangle, 3/8 in Inscribed Circle, HA Chipbreaker, Positive Rake, 0.1771 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: 325R16-175HAF01 1105, ISO Code: 325R16-175HAF01 1105, Right Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
Sandvik Coromant Thread Whirling Insert, Series: CoroMill® 325, 325R..HA Insert, T-Triangle, 3/8 in Inscribed Circle, HA Chipbreaker, Positive Rake, 0.1771 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: 325R16-175HAF01 1105, ISO Code: 325R16-175HAF01 1105, Right Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
Alternate Catalog Number 325R16-175HAF01 1105 ANSI Code 325R16-175HAF01 1105 Catalog Number 5919022 Corner Radius H, K, M, N, P, S Country of Origin TH Finish PVD Coated Gross Weight Per Pack 15.40000 lb Hand of Insert Right Hole Diameter 0.1771 in ISO Code 325R16-175HAF01 1105 Item Group 350 Lead Angle 3/8 in Length PVD Coated Pitch 1.75 Series CoroMill® 325 Thickness Positive Thread Standard HA Thread Type External Type 4.5 mm UPC 11 69826253852 Width 325R16-175HAF01 1105 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker HA Cutting Direction Right Hand Inscribed Circle 3/8 in Insert Size T - Triangle Insert Style 325R..HA Manufacturer's Grade 1105 Material Carbide Material Grade H/K/M/N/P/S Rake Positive Shape T-Triangle 20 life cycle state 3 cutting item 40 to 60 deg countersunk hole and non-flat surface 2.62 mm profile distance 16 mm insert seat E tolerance class S tipped cutting edge HA thread form 1.75 mm thread pitch External thread Screw clamp mounting Right hand cutting direction 3 edges
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 325R16-175HAF01 1105 |
| ANSI Code | 325R16-175HAF01 1105 |
| Catalog Number | 5919022 |
| Corner Radius | H, K, M, N, P, S |
| Country of Origin | TH |
| Finish | PVD Coated |
| Gross Weight Per Pack | 15.40000 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1771 in |
| ISO Code | 325R16-175HAF01 1105 |
| Item Group | 350 |
| Lead Angle | 3/8 in |
| Length | PVD Coated |
| Pitch | 1.75 |
| Series | CoroMill® 325 |
| Thickness | Positive |
| Thread Standard | HA |
| Thread Type | External |
| Type | 4.5 mm |
| UPC 11 | 69826253852 |
| Width | 325R16-175HAF01 1105 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | HA |
| Cutting Direction | Right Hand |
| Inscribed Circle | 3/8 in |
| Insert Size | T - Triangle |
| Insert Style | 325R..HA |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | H/K/M/N/P/S |
| Rake | Positive |
| Shape | T-Triangle |
| 20 life cycle state |
| 3 cutting item |
| 40 to 60 deg countersunk hole and non-flat surface |
| 2.62 mm profile distance |
| 16 mm insert seat |
| E tolerance class |
| S tipped cutting edge |
| HA thread form |
| 1.75 mm thread pitch |
| External thread |
| Screw clamp mounting |
| Right hand cutting direction |
| 3 edges |
