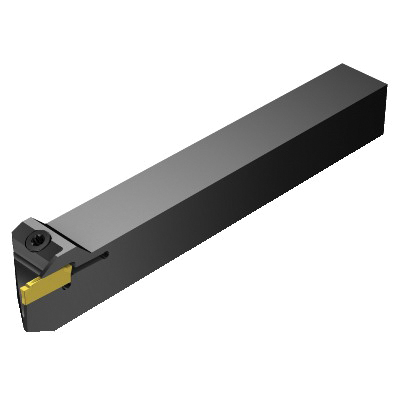

Sandvik Coromant 5918359 CoroCut® 1-2 Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5918359 CoroCut® 1-2 Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Right Hand
SKU1246407
MFGR #5918359
Your Cost: $261.98/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123F2-0250-0002-CM, RF123F067-10B-S, 5 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, F Insert Seat, Right Hand Cutting, 0.67 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123F2-0250-0002-CM, RF123F067-10B-S, 5 in Overall Length, Rectangular Shank, 5/8 in H x 5/8 in W Shank, F Insert Seat, Right Hand Cutting, 0.67 in Maximum Depth of Cut, Steel
Alternate Catalog Number RF123F067-10B-S Catalog Number 5918359 Country of Origin IN Gross Weight Per Pack 6.0000 lb Head Length 1.127 in Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 Toolholder Style R/LF123..B-S UPC 11 69826253228 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 0.67 in Overall Length 5 in Screw Type Countersunk Head Shank Size 5/8 in H x 5/8 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 34.036 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 28.618 mm minimum overhang 2.5 Nm torque 0 deg inclination 0 deg rake ANSI Code: RF123F067-10B-S ISO Code: RF123F067-10B-S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123F067-10B-S |
| Catalog Number | 5918359 |
| Country of Origin | IN |
| Gross Weight Per Pack | 6.0000 lb |
| Head Length | 1.127 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 |
| Toolholder Style | R/LF123..B-S |
| UPC 11 | 69826253228 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 0.67 in |
| Overall Length | 5 in |
| Screw Type | Countersunk Head |
| Shank Size | 5/8 in H x 5/8 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 34.036 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 28.618 mm minimum overhang |
| 2.5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: RF123F067-10B-S |
| ISO Code: RF123F067-10B-S |
