Sandvik Coromant

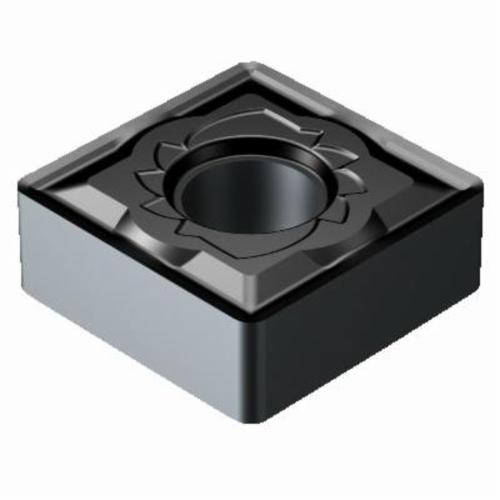

Sandvik Coromant 5915156 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-SM 1105, S-Square, SNMG Insert, 1105, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5915156 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-SM 1105, S-Square, SNMG Insert, 1105, Carbide
SKU1031385
MFGR #5915156
Your Cost: $41.21/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, SM Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: SNMG 644-SM 1105, ISO Code: SNMG 19 06 16-SM 1105, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, SM Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: SNMG 644-SM 1105, ISO Code: SNMG 19 06 16-SM 1105, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number SNMG 644-SM 1105 ANSI Code SNMG 644-SM 1105 Catalog Number 5915156 Corner Radius 0.0624 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.6900 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 16-SM 1105 Item Group 110 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826253526 UPC 12 69826253526 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/4 in Insert Size 644 Insert Style SNMG Manufacturer's Grade 1105 Material Carbide Material Grade M, S Maximum Depth of Cut 10 mm Rake Negative Seat Size 19 Shape Square Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish Wiper geometries available for high feeds and high quality surface finish Ground, super sharp insert offer for exceptional surface finish Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.45 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 644-SM 1105 |
| ANSI Code | SNMG 644-SM 1105 |
| Catalog Number | 5915156 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.6900 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 16-SM 1105 |
| Item Group | 110 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826253526 |
| UPC 12 | 69826253526 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/4 in |
| Insert Size | 644 |
| Insert Style | SNMG |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 10 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.45 mm/r cutting feed |
| 20 life cycle state |
