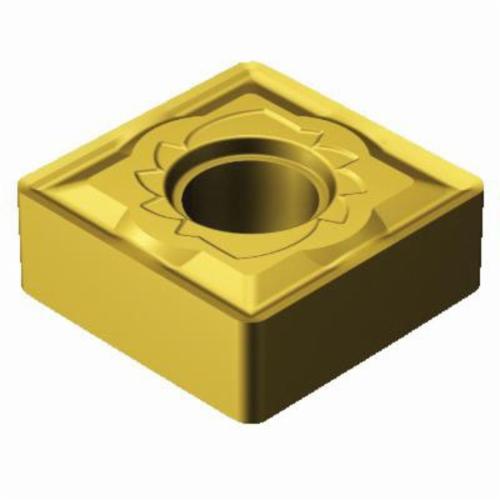

Sandvik Coromant 5915089 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-SM S05F, S-Square, SNMG Insert, S05F
Custom_Product_Images_Illustration
Sandvik Coromant 5915089 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-SM S05F, S-Square, SNMG Insert, S05F
SKU1238577
MFGR #5915089
Your Cost: $18.54/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, SM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: SNMG 432-SM S05F, ISO Code: SNMG 12 04 08-SM S05F, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, SM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: SNMG 432-SM S05F, ISO Code: SNMG 12 04 08-SM S05F, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Alternate Catalog Number SNMG 432-SM S05F ANSI Code SNMG 432-SM S05F Catalog Number 5915089 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.2029 in Included Angle 90 ° ISO Code SNMG 12 04 08-SM S05F Item Group 110 Length 1/2 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826253483 Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 432 Insert Style SNMG Manufacturer's Grade S05F Material Carbide Material Grade S Maximum Depth of Cut 5 mm Rake Negative Seat Size 12 Shape Square Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish Wiper geometries available for high feeds and high quality surface finish Ground, super sharp insert offer for exceptional surface finish Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.4 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 432-SM S05F |
| ANSI Code | SNMG 432-SM S05F |
| Catalog Number | 5915089 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 12 04 08-SM S05F |
| Item Group | 110 |
| Length | 1/2 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826253483 |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | SNMG |
| Manufacturer's Grade | S05F |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 5 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Square |
| Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107 |
| The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish |
| Wiper geometries available for high feeds and high quality surface finish |
| Ground, super sharp insert offer for exceptional surface finish |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.4 mm/r cutting feed |
| 20 life cycle state |
