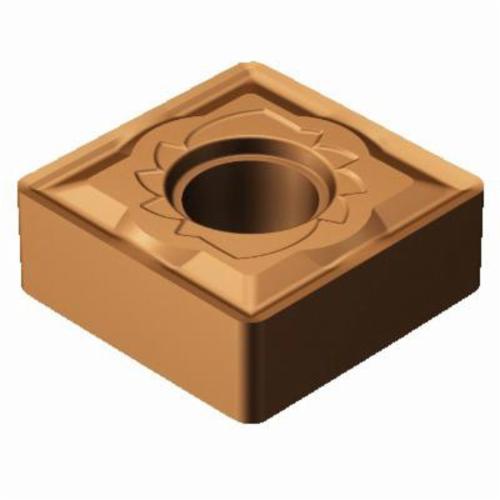

Sandvik Coromant 5915088 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-SM 1125, S-Square, SNMG Insert, 1125, Carbide
Sandvik Coromant 5915088 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-SM 1125, S-Square, SNMG Insert, 1125, Carbide
SKU1238580
MFGR #5915088
Your Cost: $16.84/ea
List: Alternate Catalog Number SNMG 432-SM 1125 ANSI Code SNMG 432-SM 1125 Catalog Number 5915088 Corner Radius 0.0312 in Finish PVD-TiAlN+AlCr2O3 Coated Hole Diameter 0.2029 in Included Angle 90 ° ISO Code SNMG 12 04 08-SM 1125 Item Group 110 Length 1/2 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826253486 Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 432 Insert Style SNMG Manufacturer's Grade 1125 Material Carbide Material Grade M, S Maximum Depth of Cut 5 mm Rake Negative Seat Size 12 Shape Square Positive insert shape Low cutting forces Excellent edge strength Screw clamping ensures stability and unobstructed chip flow Tools with high pressure coolant Insert geometries and grades for all materials 0.15 - 0.4 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 432-SM 1125 |
| ANSI Code | SNMG 432-SM 1125 |
| Catalog Number | 5915088 |
| Corner Radius | 0.0312 in |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 12 04 08-SM 1125 |
| Item Group | 110 |
| Length | 1/2 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826253486 |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | SNMG |
| Manufacturer's Grade | 1125 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 5 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Square |
| Positive insert shape |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Tools with high pressure coolant |
| Insert geometries and grades for all materials |
| 0.15 - 0.4 mm/r cutting feed |
| 20 life cycle state |
