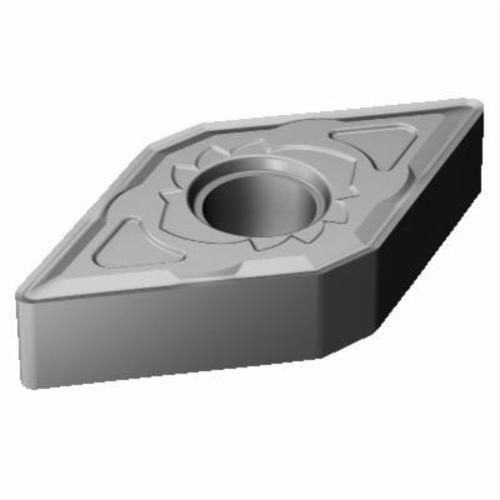

Sandvik Coromant 5915085 T-Max® P Negative Basic Shape Turning Insert, DNMG 443-SM H13A, D-55 deg Diamond, DNMG Insert

DNMG Turning Inserts
1235161 MFG #: 5915085
Sandvik Coromant
14.92000 / ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 443-SM H13A, ISO Code: DNMG 15 06 12-SM H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
  • Features
Straight hole and non-flat surface clamping interface
2-side cutting
+/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance
ER treated cutting edge
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
For external turning operations and internal machining
0.12 - 0.3 mm/r cutting feed
20 life cycle state
