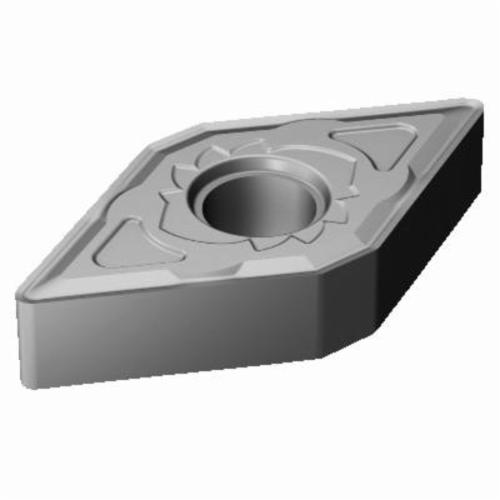

Sandvik Coromant 5915075 T-Max® P Negative Basic Shape Turning Insert, DNMG 441-SM H13A, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5915075 T-Max® P Negative Basic Shape Turning Insert, DNMG 441-SM H13A, D-55 deg Diamond, DNMG Insert
SKU1235536
MFGR #5915075
Your Cost: $17.29/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SM Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 441-SM H13A, ISO Code: DNMG 15 06 04-SM H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SM Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 441-SM H13A, ISO Code: DNMG 15 06 04-SM H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number DNMG 441-SM H13A ANSI Code DNMG 441-SM H13A Catalog Number 5915075 Corner Radius 0.0156 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.4100 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 06 04-SM H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826253045 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 441 Insert Style DNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.079 in Rake Negative Seat Size 15 Shape Rhombic Positive insert shape Low cutting forces Excellent edge strength Screw clamping ensures stability and unobstructed chip flow Tools with high pressure coolant Insert geometries and grades for all materials 0.1 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 441-SM H13A |
| ANSI Code | DNMG 441-SM H13A |
| Catalog Number | 5915075 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.4100 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 06 04-SM H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826253045 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 441 |
| Insert Style | DNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.079 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Positive insert shape |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Tools with high pressure coolant |
| Insert geometries and grades for all materials |
| 0.1 - 0.25 mm/r cutting feed |
| 20 life cycle state |
