Sandvik Coromant

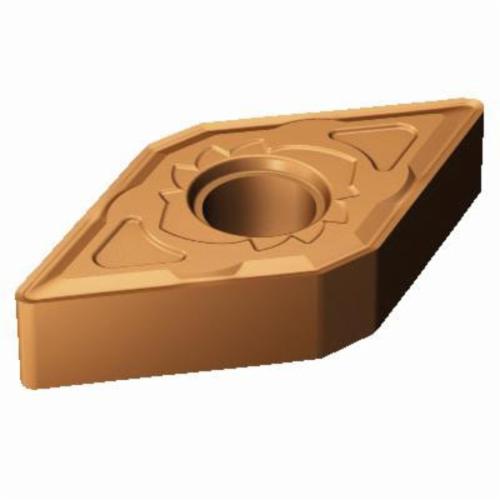

Sandvik Coromant 5915067 T-Max® P Negative Basic Shape Turning Insert, DNMG 433-SM 1115, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5915067 T-Max® P Negative Basic Shape Turning Insert, DNMG 433-SM 1115, D-55 deg Diamond, DNMG Insert
SKU1235495
MFGR #5915067
Your Cost: $22.05/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: DNMG 433-SM 1115, ISO Code: DNMG 15 04 12-SM 1115, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1115, ANSI Code: DNMG 433-SM 1115, ISO Code: DNMG 15 04 12-SM 1115, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number DNMG 433-SM 1115 ANSI Code DNMG 433-SM 1115 Catalog Number 5915067 Corner Radius 0.0468 in Country of Origin SE Finish PVD-TiAlN+AlCr2O3 Coated Gross Weight Per Pack 0.3000 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 04 12-SM 1115 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826253033 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 433 Insert Style DNMG Manufacturer's Grade 1115 Material Carbide Material Grade M, S Maximum Depth of Cut 0.118 in Rake Negative Seat Size 15 Shape Rhombic Positive insert shape Low cutting forces Excellent edge strength Screw clamping ensures stability and unobstructed chip flow Tools with high pressure coolant Insert geometries and grades for all materials 0.12 - 0.35 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 433-SM 1115 |
| ANSI Code | DNMG 433-SM 1115 |
| Catalog Number | 5915067 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN+AlCr2O3 Coated |
| Gross Weight Per Pack | 0.3000 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 04 12-SM 1115 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826253033 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | DNMG |
| Manufacturer's Grade | 1115 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.118 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Positive insert shape |
| Low cutting forces |
| Excellent edge strength |
| Screw clamping ensures stability and unobstructed chip flow |
| Tools with high pressure coolant |
| Insert geometries and grades for all materials |
| 0.12 - 0.35 mm/r cutting feed |
| 20 life cycle state |
