Sandvik Coromant

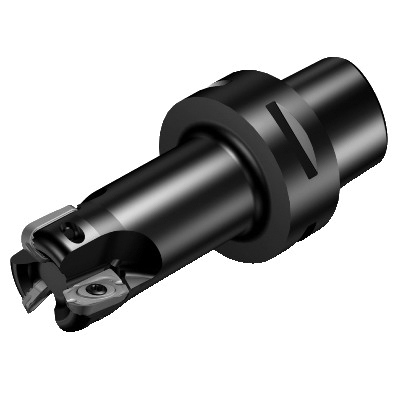

Sandvik Coromant 5912566 CoroMill® 790 Square Shoulder Milling Cutter, R790..Cx Insert, 3.307 in Cutting, Right Hand, 0.4724 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5912566 CoroMill® 790 Square Shoulder Milling Cutter, R790..Cx Insert, 3.307 in Cutting, Right Hand, 0.4724 in Max Depth of Cut
SKU1251395
MFGR #5912566
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 790, 3.307 in Cutting Dia, 4.8425 in Overall Length, 0.4724 in Maximum Depth of Cut, R790..Cx Insert, 9 Inserts, Insert Compatibility: R790-1604, 3.1496 in Shank Dia, Right Hand Cutting, ANSI Code: R790-084C8S1-16H, ISO Code: R790-084C8S1-16H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 790, 3.307 in Cutting Dia, 4.8425 in Overall Length, 0.4724 in Maximum Depth of Cut, R790..Cx Insert, 9 Inserts, Insert Compatibility: R790-1604, 3.1496 in Shank Dia, Right Hand Cutting, ANSI Code: R790-084C8S1-16H, ISO Code: R790-084C8S1-16H, Steel
Alternate Catalog Number R790-084C8S1-16H ANSI Code R790-084C8S1-16H Catalog Number 5912566 Country of Origin US Gross Weight Per Pack 7.7900 lb Head Length Square Insert Gage Screw 80 mm ISO Code R790-084C8S1-16H Item Group 440 Material Steel Series CoroMill® 790 Type Square UPC 11 69826253441 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 3.307 in Cutting Direction Right Hand Insert Compatibility R790-1604 Insert Style R790..Cx Maximum Depth of Cut 0.4724 in Number of Inserts 9 Overall Length 4.8425 in Shank Diameter 3.1496 in Shank Length 123 mm Shank Type Steel Axial concentric and radial coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 84 mm Dia maximum cutting 90 deg cutting edge 75 mm overhang 2 deg maximum ramping 14000 r/min 3 Nm torque 20 life cycle state 0.006 maximum working engagement ratio Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R790-084C8S1-16H |
| ANSI Code | R790-084C8S1-16H |
| Catalog Number | 5912566 |
| Country of Origin | US |
| Gross Weight Per Pack | 7.7900 lb |
| Head Length | Square |
| Insert Gage Screw | 80 mm |
| ISO Code | R790-084C8S1-16H |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 790 |
| Type | Square |
| UPC 11 | 69826253441 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 3.307 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R790-1604 |
| Insert Style | R790..Cx |
| Maximum Depth of Cut | 0.4724 in |
| Number of Inserts | 9 |
| Overall Length | 4.8425 in |
| Shank Diameter | 3.1496 in |
| Shank Length | 123 mm |
| Shank Type | Steel |
| Axial concentric and radial coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 84 mm Dia maximum cutting |
| 90 deg cutting edge |
| 75 mm overhang |
| 2 deg maximum ramping |
| 14000 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 0.006 maximum working engagement ratio |
| Bolt and segment clamping adaptive interface |
