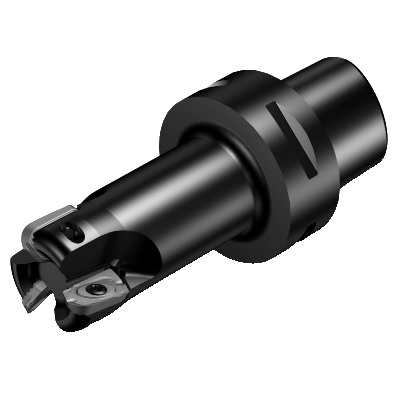

Sandvik Coromant 5912563 CoroMill® 790 Square Shoulder Milling Cutter, R790..Cx Insert, 2.1259 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 5912563 CoroMill® 790 Square Shoulder Milling Cutter, R790..Cx Insert, 2.1259 in Cutting, Right Hand
SKU1251474
MFGR #5912563
Your Cost: $1,612.09/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 790, 2.1259 in Cutting Dia, 3.7795 in Overall Length, 0.7086 in Maximum Depth of Cut, R790..Cx Insert, 4 Inserts, Insert Compatibility: R790-2205, 1.9685 in Shank Dia, Right Hand Cutting, ANSI Code: R790-054C5S2-22H, ISO Code: R790-054C5S2-22H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 790, 2.1259 in Cutting Dia, 3.7795 in Overall Length, 0.7086 in Maximum Depth of Cut, R790..Cx Insert, 4 Inserts, Insert Compatibility: R790-2205, 1.9685 in Shank Dia, Right Hand Cutting, ANSI Code: R790-054C5S2-22H, ISO Code: R790-054C5S2-22H, Steel
Alternate Catalog Number R790-054C5S2-22H ANSI Code R790-054C5S2-22H Catalog Number 5912563 Country of Origin US Gross Weight Per Pack 3.4800 lb Head Length 96 mm Insert Gage Screw 50 mm ISO Code R790-054C5S2-22H Item Group 440 Lead Angle 90 Material Steel Series CoroMill® 790 Type Square UPC 11 69826253438 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2.1259 in Cutting Direction Right Hand Insert Compatibility R790-2205 Insert Style R790..Cx Maximum Depth of Cut 0.7086 in Number of Inserts 4 Overall Length 3.7795 in Shank Diameter 1.9685 in Shank Length Steel Shank Type R790-054C5S2-22H Axial concentric and radial coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 54 mm Dia maximum cutting 90 deg cutting edge 66 mm overhang 12 deg maximum ramping 28000 r/min 5 Nm torque 20 life cycle state 0.0093 maximum working engagement ratio Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R790-054C5S2-22H |
| ANSI Code | R790-054C5S2-22H |
| Catalog Number | 5912563 |
| Country of Origin | US |
| Gross Weight Per Pack | 3.4800 lb |
| Head Length | 96 mm |
| Insert Gage Screw | 50 mm |
| ISO Code | R790-054C5S2-22H |
| Item Group | 440 |
| Lead Angle | 90 |
| Material | Steel |
| Series | CoroMill® 790 |
| Type | Square |
| UPC 11 | 69826253438 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2.1259 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R790-2205 |
| Insert Style | R790..Cx |
| Maximum Depth of Cut | 0.7086 in |
| Number of Inserts | 4 |
| Overall Length | 3.7795 in |
| Shank Diameter | 1.9685 in |
| Shank Length | Steel |
| Shank Type | R790-054C5S2-22H |
| Axial concentric and radial coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 54 mm Dia maximum cutting |
| 90 deg cutting edge |
| 66 mm overhang |
| 12 deg maximum ramping |
| 28000 r/min |
| 5 Nm torque |
| 20 life cycle state |
| 0.0093 maximum working engagement ratio |
| Bolt and segment clamping adaptive interface |
