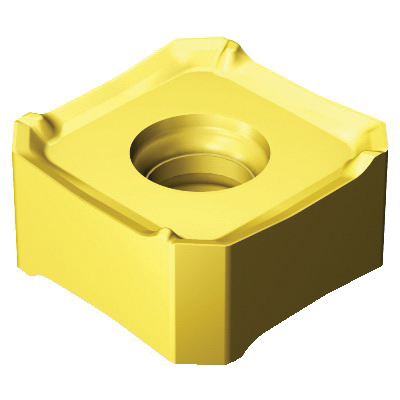

Sandvik Coromant 5910502 CoroMill® 345 Milling Insert, 345R-13T5E-MM 2030, S-Square, 345R/L..E-MM Insert, Carbide, 2030, 345R-13T5E-MM 2030
Custom_Product_Images_Illustration
Sandvik Coromant 5910502 CoroMill® 345 Milling Insert, 345R-13T5E-MM 2030, S-Square, 345R/L..E-MM Insert, Carbide, 2030, 345R-13T5E-MM 2030
SKU1232716
MFGR #5910502
Your Cost: $40.99/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..E-MM Insert, S-Square, 0.5118 in Inscribed Circle, 0.2342 in Thickness, 0.5118 in Length, MM Chipbreaker, 0.0314 in Corner Radius, 30 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: 345R-13T5E-MM 2030, ISO Code: 345R-13T5E-MM 2030, Right Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345R/L..E-MM Insert, S-Square, 0.5118 in Inscribed Circle, 0.2342 in Thickness, 0.5118 in Length, MM Chipbreaker, 0.0314 in Corner Radius, 30 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 2030, ANSI Code: 345R-13T5E-MM 2030, ISO Code: 345R-13T5E-MM 2030, Right Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number 345R-13T5E-MM 2030 ANSI Code 345R-13T5E-MM 2030 Catalog Number 5910502 Corner Radius 0.0314 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Right Hole Diameter 0.1889 in ISO Code 345R-13T5E-MM 2030 Item Group 355 Lead Angle 45 deg Length 0.5118 in Series CoroMill® 345 Thickness 0.2342 in Type 5.95 mm Width 0.8 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.5118 in Insert Size S - Square Insert Style 345R/L..E-MM Manufacturer's Grade 2030 Material Carbide Material Grade M Rake 30 deg Negative Shape S-Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 0 deg clearance 6 mm D cutting 2 mm L wiper edge 107 mm wiper edge radius 90 deg included 45 deg major cutting edge 8.8 mm L effective cutting edge 2-side cutting 20 life cycle state 4 corner E cutting edge condition 8 cutting edge 0.15 to 0.4 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 345R-13T5E-MM 2030 |
| ANSI Code | 345R-13T5E-MM 2030 |
| Catalog Number | 5910502 |
| Corner Radius | 0.0314 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1889 in |
| ISO Code | 345R-13T5E-MM 2030 |
| Item Group | 355 |
| Lead Angle | 45 deg |
| Length | 0.5118 in |
| Series | CoroMill® 345 |
| Thickness | 0.2342 in |
| Type | 5.95 mm |
| Width | 0.8 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.5118 in |
| Insert Size | S - Square |
| Insert Style | 345R/L..E-MM |
| Manufacturer's Grade | 2030 |
| Material | Carbide |
| Material Grade | M |
| Rake | 30 deg Negative |
| Shape | S-Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 2 mm L wiper edge |
| 107 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 8 cutting edge |
| 0.15 to 0.4 mm/r cutting feed |
