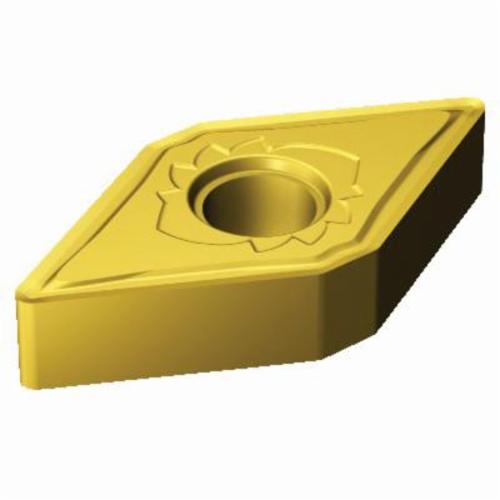

Sandvik Coromant 5909052 T-Max® P Negative Basic Shape Turning Insert, DNMG 444-SMR S05F, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 5909052 T-Max® P Negative Basic Shape Turning Insert, DNMG 444-SMR S05F, D-55 deg Diamond, DNMG Insert
SKU1235197
MFGR #5909052
Your Cost: $25.60/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: DNMG 444-SMR S05F, ISO Code: DNMG 15 06 16-SMR S05F, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: DNMG 444-SMR S05F, ISO Code: DNMG 15 06 16-SMR S05F, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Alternate Catalog Number DNMG 444-SMR S05F ANSI Code DNMG 444-SMR S05F Catalog Number 5909052 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4000 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 06 16-SMR S05F Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826253079 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Heat Resistant Super Alloys Inscribed Circle 1/2 in Insert Size 444 Insert Style DNMG Manufacturer's Grade S05F Material Carbide Material Grade S Maximum Depth of Cut 0.188 in Rake Negative Seat Size 15 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.12 - 0.3 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 444-SMR S05F |
| ANSI Code | DNMG 444-SMR S05F |
| Catalog Number | 5909052 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4000 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 06 16-SMR S05F |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826253079 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys |
| Inscribed Circle | 1/2 in |
| Insert Size | 444 |
| Insert Style | DNMG |
| Manufacturer's Grade | S05F |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 0.188 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.12 - 0.3 mm/r cutting feed |
| 20 life cycle state |
