Sandvik Coromant

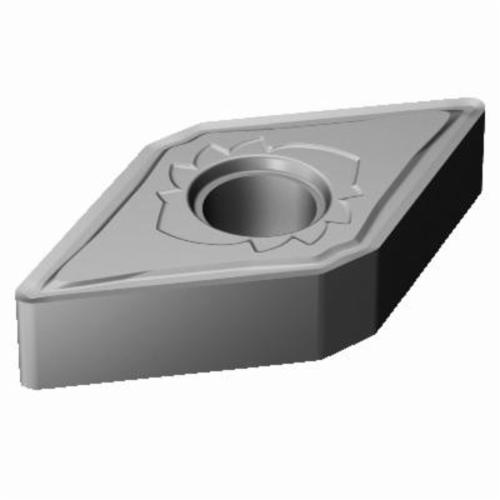

Sandvik Coromant 5909042 T-Max® P Negative Basic Shape Turning Insert, DNMG 442-SMR H13A, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5909042 T-Max® P Negative Basic Shape Turning Insert, DNMG 442-SMR H13A, D-55 deg Diamond, DNMG Insert
SKU1235502
MFGR #5909042
Your Cost: $16.67/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 442-SMR H13A, ISO Code: DNMG 15 06 08-SMR H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 442-SMR H13A, ISO Code: DNMG 15 06 08-SMR H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number DNMG 442-SMR H13A ANSI Code DNMG 442-SMR H13A Catalog Number 5909042 Corner Radius 0.0312 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.4000 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 06 08-SMR H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826253060 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 442 Insert Style DNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.098 in Rake Negative Seat Size 15 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 442-SMR H13A |
| ANSI Code | DNMG 442-SMR H13A |
| Catalog Number | 5909042 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.4000 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 06 08-SMR H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826253060 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 442 |
| Insert Style | DNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.098 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.25 mm/r cutting feed |
| 20 life cycle state |
