Sandvik Coromant

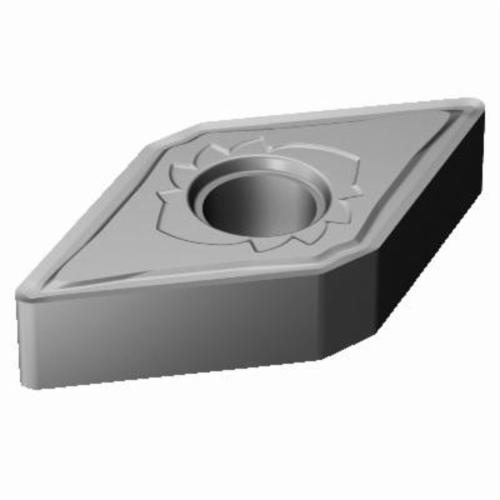

Sandvik Coromant 5909035 T-Max® P Negative Basic Shape Turning Insert, DNMG 433-SMR H13A, D-55 deg Diamond, DNMG Insert, H13A
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5909035 T-Max® P Negative Basic Shape Turning Insert, DNMG 433-SMR H13A, D-55 deg Diamond, DNMG Insert, H13A
SKU1235498
MFGR #5909035
Your Cost: $13.12/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 433-SMR H13A, ISO Code: DNMG 15 04 12-SMR H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 433-SMR H13A, ISO Code: DNMG 15 04 12-SMR H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
ANSI Code DNMG 433-SMR H13A Catalog Number 5909035 Corner Radius 0.0468 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.3400 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 04 12-SMR H13A Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826253035 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 433 Insert Style DNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.118 in Rake Negative Seat Size 15 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.3 mm/r cutting feed 30 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | DNMG 433-SMR H13A |
| Catalog Number | 5909035 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.3400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 04 12-SMR H13A |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826253035 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | DNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.118 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.3 mm/r cutting feed |
| 30 life cycle state |
