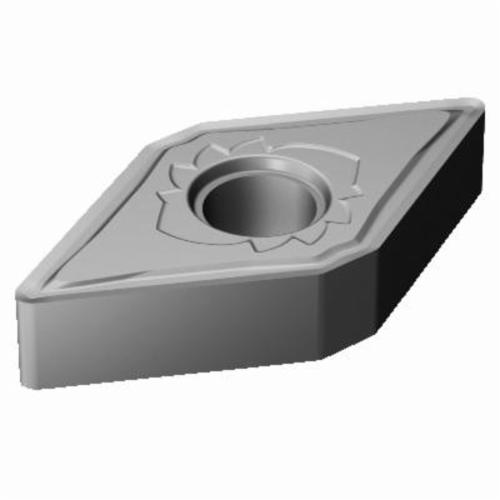

Sandvik Coromant 5909029 T-Max® P Negative Basic Shape Turning Insert, DNMG 432-SMR H13A, D-55 deg Diamond, DNMG Insert, H13A
Custom_Product_Images_Illustration
Sandvik Coromant 5909029 T-Max® P Negative Basic Shape Turning Insert, DNMG 432-SMR H13A, D-55 deg Diamond, DNMG Insert, H13A
SKU1235521
MFGR #5909029
Your Cost: $17.11/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 432-SMR H13A, ISO Code: DNMG 15 04 08-SMR H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, SMR Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: DNMG 432-SMR H13A, ISO Code: DNMG 15 04 08-SMR H13A, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number DNMG 432-SMR H13A ANSI Code DNMG 432-SMR H13A Catalog Number 5909029 Corner Radius 0.0312 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.3400 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 04 08-SMR H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826253022 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 432 Insert Style DNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.098 in Rake Negative Seat Size 15 Shape Rhombic Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.1 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 432-SMR H13A |
| ANSI Code | DNMG 432-SMR H13A |
| Catalog Number | 5909029 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.3400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 04 08-SMR H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826253022 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | DNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.098 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.1 - 0.25 mm/r cutting feed |
| 20 life cycle state |
