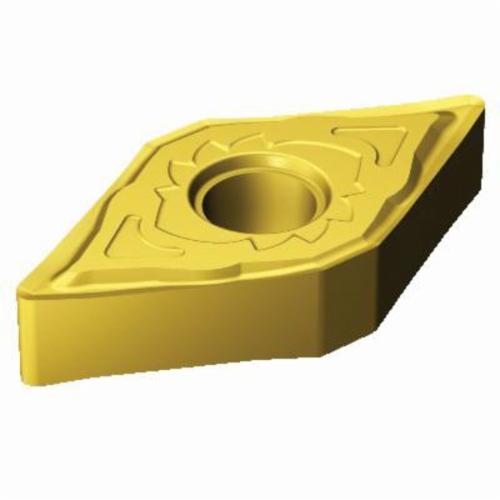

Sandvik Coromant 5909012 T-Max® P Negative Basic Shape Turning Insert, DNGG 441-SGF S05F, D-55 deg Diamond, DNGG Insert, S05F
Custom_Product_Images_Illustration
Sandvik Coromant 5909012 T-Max® P Negative Basic Shape Turning Insert, DNGG 441-SGF S05F, D-55 deg Diamond, DNGG Insert, S05F
SKU1228353
MFGR #5909012
Your Cost: $28.12/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNGG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SGF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: DNGG 441-SGF S05F, ISO Code: DNGG 15 06 04-SGF S05F, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNGG Insert, D-55 deg Diamond, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, SGF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: DNGG 441-SGF S05F, ISO Code: DNGG 15 06 04-SGF S05F, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: S
Alternate Catalog Number DNGG 441-SGF S05F ANSI Code DNGG 441-SGF S05F Catalog Number 5909012 Corner Radius 0.0156 in Country of Origin US Finish MTCVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNGG 15 06 04-SGF S05F Item Group 110 Length 0.6103 in Relief Angle 0 deg LB Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826252987 Width SGF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SGF Cutting Direction Neutral For Use On Heat Resistant Super Alloys Inscribed Circle 1/2 in Insert Size D - 55 deg Diamond Insert Style DNGG Manufacturer's Grade S05F Material Carbide Material Grade S Maximum Depth of Cut 3 mm Rake Negative Seat Size 15 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance Sharp cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.05 - 0.2 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNGG 441-SGF S05F |
| ANSI Code | DNGG 441-SGF S05F |
| Catalog Number | 5909012 |
| Corner Radius | 0.0156 in |
| Country of Origin | US |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNGG 15 06 04-SGF S05F |
| Item Group | 110 |
| Length | 0.6103 in |
| Relief Angle | 0 deg LB |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826252987 |
| Width | SGF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SGF |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys |
| Inscribed Circle | 1/2 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNGG |
| Manufacturer's Grade | S05F |
| Material | Carbide |
| Material Grade | S |
| Maximum Depth of Cut | 3 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.025 mm inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.05 - 0.2 mm/r cutting feed |
| 20 life cycle state |
