Sandvik Coromant 5908986 T-Max® P Negative Basic Shape Turning Insert, CNMG 434-SMR H13A, C-80 deg Diamond, CNMG Insert

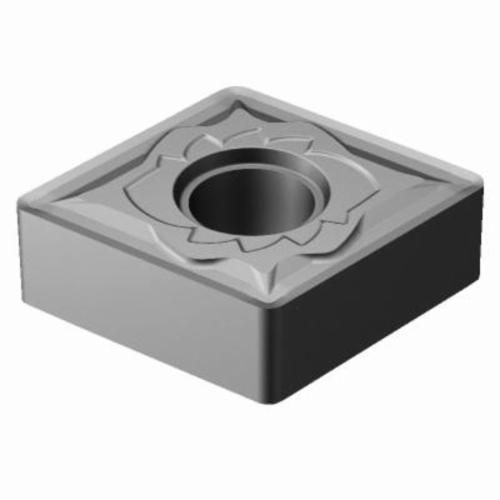

Custom_Product_Images_Illustration
Sandvik Coromant 5908986 T-Max® P Negative Basic Shape Turning Insert, CNMG 434-SMR H13A, C-80 deg Diamond, CNMG Insert
SKU1242004
MFGR #5908986
Your Cost: $12.16/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SMR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: CNMG 434-SMR H13A, ISO Code: CNMG 12 04 16-SMR H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, SMR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: CNMG 434-SMR H13A, ISO Code: CNMG 12 04 16-SMR H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Alternate Catalog Number CNMG 434-SMR H13A ANSI Code CNMG 434-SMR H13A Catalog Number 5908986 Corner Radius 0.062 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG 12 04 16-SMR H13A Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in UPC 11 69826252842 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 1/2 in Insert Size 434 Insert Style CNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 0.157 in Rake Negative Seat Size 12 Shape Rhombic Straight hole and non-flat surface clamping interface 20 life cycle state 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.45 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 434-SMR H13A |
| ANSI Code | CNMG 434-SMR H13A |
| Catalog Number | 5908986 |
| Corner Radius | 0.062 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 16-SMR H13A |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| UPC 11 | 69826252842 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 1/2 in |
| Insert Size | 434 |
| Insert Style | CNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Straight hole and non-flat surface clamping interface |
| 20 life cycle state |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.45 mm/r cutting feed |
