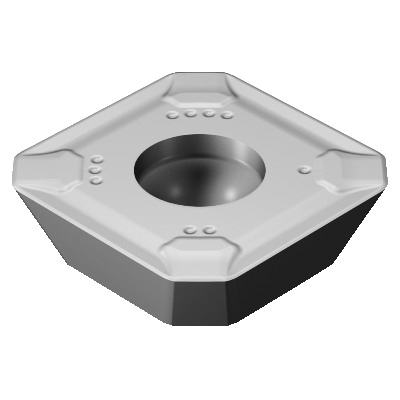

Sandvik Coromant 5908390 CoroMill® 245 Milling Insert, R245-12 T3 K-MM 1040 ANSI, S-Square, R245..K-MM Insert, Carbide, 1040
Custom_Product_Images_Illustration
Sandvik Coromant 5908390 CoroMill® 245 Milling Insert, R245-12 T3 K-MM 1040 ANSI, S-Square, R245..K-MM Insert, Carbide, 1040
SKU598199
MFGR #5908390
Your Cost: $21.71/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..K-MM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, MM Chipbreaker, 0.059 in Corner Radius, 15 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R245-12 T3 K-MM 1040, ISO Code: R245-12 T3 K-MM 1040, Right Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 245, R245..K-MM Insert, S-Square, 0.5275 in Inscribed Circle, 0.1562 in Thickness, 0.5275 in Length, MM Chipbreaker, 0.059 in Corner Radius, 15 deg Positive Rake, 45 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R245-12 T3 K-MM 1040, ISO Code: R245-12 T3 K-MM 1040, Right Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number R245-12 T3 K-MM 1040 Catalog Number 5908390 Corner Radius 0.059 in Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.1700 lb Hand of Insert Right Hole Diameter 0.1614 in ISO Code R245-12 T3 K-MM 1040 Item Group 350 Lead Angle 45 ° Length 0.528 in Material Application Stainless Steel Series CoroMill® 245 Thickness 0.156 in UPC 11 69826253351 UPC 12 69826253351 Width 0.528 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.528 in Insert Size 12T3 Insert Style R245..K-MM Manufacturer's Grade 1040 Material Carbide Material Grade M Shape Square 40 to 60 deg countersunk hole and non-flat surface clamping interface 20 deg clearance 6.5 mm D cutting 2.1 mm L wiper edge 200 mm wiper edge radius 90 deg included 45 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 4 corner T cutting edge condition 4 cutting edge Screw clamp mounting 0.1 to 0.28 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R245-12 T3 K-MM 1040 |
| Catalog Number | 5908390 |
| Corner Radius | 0.059 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.1700 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| ISO Code | R245-12 T3 K-MM 1040 |
| Item Group | 350 |
| Lead Angle | 45 ° |
| Length | 0.528 in |
| Material Application | Stainless Steel |
| Series | CoroMill® 245 |
| Thickness | 0.156 in |
| UPC 11 | 69826253351 |
| UPC 12 | 69826253351 |
| Width | 0.528 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.528 in |
| Insert Size | 12T3 |
| Insert Style | R245..K-MM |
| Manufacturer's Grade | 1040 |
| Material | Carbide |
| Material Grade | M |
| Shape | Square |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 20 deg clearance |
| 6.5 mm D cutting |
| 2.1 mm L wiper edge |
| 200 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| T cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.28 mm/r cutting feed |
