Sandvik Coromant

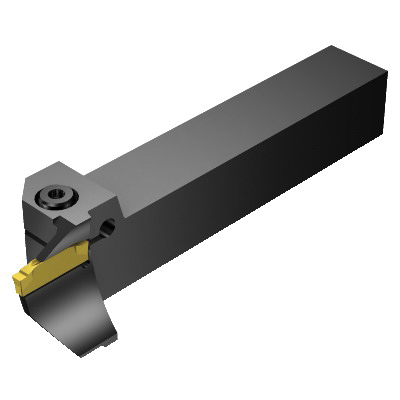

Sandvik Coromant 5908247 CoroCut® 1-2, Left Hand, N123K2-0600-0004-TF Insert, K Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5908247 CoroCut® 1-2, Left Hand, N123K2-0600-0004-TF Insert, K Insert Seat
SKU1254220
MFGR #5908247
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123K2-0600-0004-TF, LF123K050-16B-088BM, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, K Insert Seat, Left Hand Cutting, 3.4645 in ID x 3.937 to 7.0866 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123K2-0600-0004-TF, LF123K050-16B-088BM, 6 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, K Insert Seat, Left Hand Cutting, 3.4645 in ID x 3.937 to 7.0866 in OD Groove Width, Steel
Alternate Catalog Number LF123K050-16B-088BM Catalog Number 5908247 Country of Origin SE Finish External Geometry LF123K050-16B-088BM Gross Weight Per Pack 1.5400 lb Head Length LF123K050-16B-088BM Inscribed Circle 1.024 Item Group 480 Material Steel Maximum Workpiece Diameter K Series CoroCut® 1-2 UPC 11 69826253118 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Groove Width 3.4645 in ID x 3.937 to 7.0866 in OD Insert Compatibility N123K2-0600-0004-TF Insert Seat Size K Overall Length 6 in Screw Type 1 in H x 1 in W Shank Size 1 in H x 1 in W Shank Type Rectangular Type CoroCut® 1-2 0 deg body workpiece side 20 life cycle state 12.7 mm D maximum cutting Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 34.7 mm minimum overhang 23 mm width to cutting item reference point 4.1 Nm torque 2 axial groove support direction 25.4 mm W shank 26 mm W functiona ANSI Code: LF123K050-16B-088BM ISO Code: LF123K050-16B-088BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF123K050-16B-088BM |
| Catalog Number | 5908247 |
| Country of Origin | SE |
| Finish | External |
| Geometry | LF123K050-16B-088BM |
| Gross Weight Per Pack | 1.5400 lb |
| Head Length | LF123K050-16B-088BM |
| Inscribed Circle | 1.024 |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | K |
| Series | CoroCut® 1-2 |
| UPC 11 | 69826253118 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Groove Width | 3.4645 in ID x 3.937 to 7.0866 in OD |
| Insert Compatibility | N123K2-0600-0004-TF |
| Insert Seat Size | K |
| Overall Length | 6 in |
| Screw Type | 1 in H x 1 in W |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Type | CoroCut® 1-2 |
| 0 deg body workpiece side |
| 20 life cycle state |
| 12.7 mm D maximum cutting |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 34.7 mm minimum overhang |
| 23 mm width to cutting item reference point |
| 4.1 Nm torque |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 26 mm W functiona |
| ANSI Code: LF123K050-16B-088BM |
| ISO Code: LF123K050-16B-088BM |
