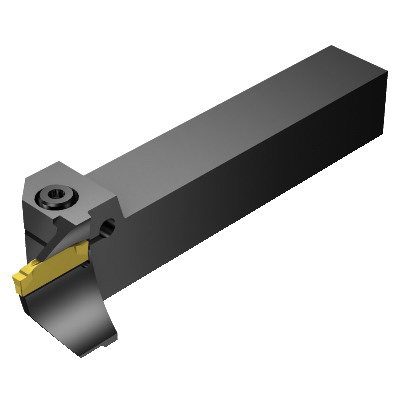

Sandvik Coromant 5908211 CoroCut® 1-2, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5908211 CoroCut® 1-2, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1254545
MFGR #5908211
Your Cost: $291.66/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, LF123G047-12B-034B, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Left Hand Cutting, 1.3385 in ID x 1.5748 to 1.7322 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, LF123G047-12B-034B, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Left Hand Cutting, 1.3385 in ID x 1.5748 to 1.7322 in OD Groove Width, Steel
Alternate Catalog Number LF123G047-12B-034B Catalog Number 5908211 Country of Origin SE Finish External Geometry LF123G047-12B-034B Gross Weight Per Pack 0.8800 lb Head Length Left Hand Inscribed Circle 0.827 Item Group 480 Material Steel Maximum Workpiece Diameter G Minimum Hole Diameter 1.339 Series CoroCut® 1-2 Toolholder Type LF123G047 UPC 11 69826253084 Warranty 0.47" Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Groove Width 1.3385 in ID x 1.5748 to 1.7322 in OD Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 5 in Screw Type 3/4 in H x 3/4 in W Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular Type G 0 deg body workpiece side 20 life cycle state 11.94 mm D maximum cutting Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 32 mm minimum overhang 19.5 mm width to cutting item reference point 2.1 Nm torque 2 axial groove support direction 19.05 mm W shank 21 mm W functiona ANSI Code: LF123G047-12B-034B ISO Code: LF123G047-12B-034B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF123G047-12B-034B |
| Catalog Number | 5908211 |
| Country of Origin | SE |
| Finish | External |
| Geometry | LF123G047-12B-034B |
| Gross Weight Per Pack | 0.8800 lb |
| Head Length | Left Hand |
| Inscribed Circle | 0.827 |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | G |
| Minimum Hole Diameter | 1.339 |
| Series | CoroCut® 1-2 |
| Toolholder Type | LF123G047 |
| UPC 11 | 69826253084 |
| Warranty | 0.47" |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Groove Width | 1.3385 in ID x 1.5748 to 1.7322 in OD |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 5 in |
| Screw Type | 3/4 in H x 3/4 in W |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| Type | G |
| 0 deg body workpiece side |
| 20 life cycle state |
| 11.94 mm D maximum cutting |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 32 mm minimum overhang |
| 19.5 mm width to cutting item reference point |
| 2.1 Nm torque |
| 2 axial groove support direction |
| 19.05 mm W shank |
| 21 mm W functiona |
| ANSI Code: LF123G047-12B-034B |
| ISO Code: LF123G047-12B-034B |
