Sandvik Coromant 5908207 CoroCut® 1-2, Right Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration

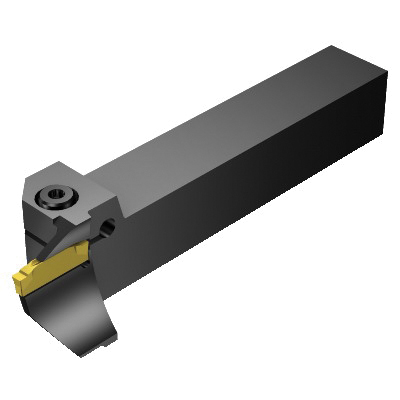

Sandvik Coromant 5908207 CoroCut® 1-2, Right Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1245900
MFGR #5908207
Your Cost: $291.66/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G050-12B-054B, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Right Hand Cutting, 2.1259 in ID x 2.3622 to 2.9527 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G050-12B-054B, 5 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Right Hand Cutting, 2.1259 in ID x 2.3622 to 2.9527 in OD Groove Width, Steel
Alternate Catalog Number RF123G050-12B-054B Catalog Number 5908207 Country of Origin SE Gross Weight Per Pack 0.8800 lb Item Group 480 Material Steel Maximum Workpiece Diameter 2.953 in Minimum Hole Diameter 2.126 in Series CoroCut® 1-2 Through Coolant [Yes|No] No Toolholder Type RF123G050 UPC 11 69826253232 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 5 in Screw Type Socket Head Cap Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 32.7 mm minimum overhang 19.5 mm width to cutting item reference point 2.3 Nm torque 2 axial groove support direction 19.05 mm W shank 21 mm W functiona ANSI Code: RF123G050-12B-054B ISO Code: RF123G050-12B-054B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123G050-12B-054B |
| Catalog Number | 5908207 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.8800 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 2.953 in |
| Minimum Hole Diameter | 2.126 in |
| Series | CoroCut® 1-2 |
| Through Coolant [Yes|No] | No |
| Toolholder Type | RF123G050 |
| UPC 11 | 69826253232 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 5 in |
| Screw Type | Socket Head Cap |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 32.7 mm minimum overhang |
| 19.5 mm width to cutting item reference point |
| 2.3 Nm torque |
| 2 axial groove support direction |
| 19.05 mm W shank |
| 21 mm W functiona |
| ANSI Code: RF123G050-12B-054B |
| ISO Code: RF123G050-12B-054B |
