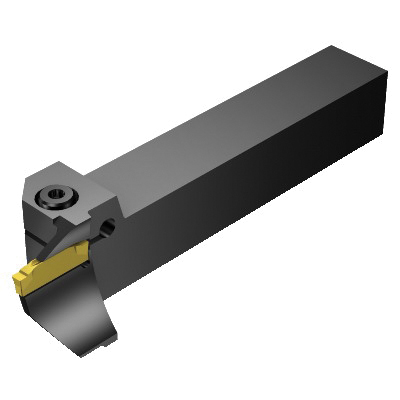

Sandvik Coromant 5908192 CoroCut® 1-2, Left Hand, N123L2-0800-0008-TF Insert, L Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5908192 CoroCut® 1-2, Left Hand, N123L2-0800-0008-TF Insert, L Insert Seat
SKU1254132
MFGR #5908192
Your Cost: $320.05/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123L2-0800-0008-TF, LF123L15-2525B-075BM, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, L Insert Seat, Left Hand Cutting, 2.9527 in ID x 3.5826 to 5.9055 in OD Groove Width, 5.906 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123L2-0800-0008-TF, LF123L15-2525B-075BM, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, L Insert Seat, Left Hand Cutting, 2.9527 in ID x 3.5826 to 5.9055 in OD Groove Width, 5.906 in Inscribed Circle, Steel
Alternate Catalog Number LF123L15-2525B-075BM Catalog Number 5908192 Country of Origin SE Finish External Geometry LF123L15-2525B-075BM Gross Weight Per Pack 1.5400 lb Head Length 150 mm Inscribed Circle 5.906 in Item Group 480 Material Steel Maximum Workpiece Diameter 5.906 in Minimum Hole Diameter 2.953 Series CoroCut® 1-2 Toolholder Type LF123L15 UPC 11 69826253130 Warranty 0.591 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Groove Width 2.9527 in ID x 3.5826 to 5.9055 in OD Insert Compatibility N123L2-0800-0008-TF Insert Seat Size L Overall Length 5.9055 in Screw Type 25 mm H x 25 mm W Shank Size 0.9842 in H x 0.9842 in W Shank Type Rectangular Type Left Hand 0 deg body workpiece side 20 life cycle state 15 mm D maximum cutting Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 39 mm minimum overhang 22 mm width to cutting item reference point 4.6 Nm torque 2 axial groove support direction 25 mm W shank 26 mm W functiona ANSI Code: LF123L15-2525B-075BM ISO Code: LF123L15-2525B-075BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF123L15-2525B-075BM |
| Catalog Number | 5908192 |
| Country of Origin | SE |
| Finish | External |
| Geometry | LF123L15-2525B-075BM |
| Gross Weight Per Pack | 1.5400 lb |
| Head Length | 150 mm |
| Inscribed Circle | 5.906 in |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 5.906 in |
| Minimum Hole Diameter | 2.953 |
| Series | CoroCut® 1-2 |
| Toolholder Type | LF123L15 |
| UPC 11 | 69826253130 |
| Warranty | 0.591 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Groove Width | 2.9527 in ID x 3.5826 to 5.9055 in OD |
| Insert Compatibility | N123L2-0800-0008-TF |
| Insert Seat Size | L |
| Overall Length | 5.9055 in |
| Screw Type | 25 mm H x 25 mm W |
| Shank Size | 0.9842 in H x 0.9842 in W |
| Shank Type | Rectangular |
| Type | Left Hand |
| 0 deg body workpiece side |
| 20 life cycle state |
| 15 mm D maximum cutting |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 39 mm minimum overhang |
| 22 mm width to cutting item reference point |
| 4.6 Nm torque |
| 2 axial groove support direction |
| 25 mm W shank |
| 26 mm W functiona |
| ANSI Code: LF123L15-2525B-075BM |
| ISO Code: LF123L15-2525B-075BM |
