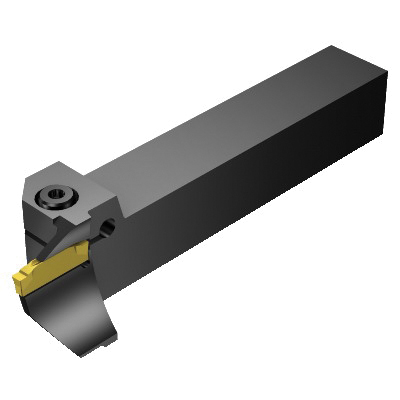

Sandvik Coromant 5908190 CoroCut® 1-2, Right Hand, N123L2-0800-0008-TF Insert, L Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 5908190 CoroCut® 1-2, Right Hand, N123L2-0800-0008-TF Insert, L Insert Seat
SKU1246209
MFGR #5908190
Your Cost: $303.15/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123L2-0800-0008-TF, RF123L15-2525B-075BM, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, L Insert Seat, Right Hand Cutting, 2.9527 in ID x 3.5826 to 5.9055 in OD Groove Width, 5.906 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123L2-0800-0008-TF, RF123L15-2525B-075BM, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, L Insert Seat, Right Hand Cutting, 2.9527 in ID x 3.5826 to 5.9055 in OD Groove Width, 5.906 in Inscribed Circle, Steel
Alternate Catalog Number RF123L15-2525B-075BM Catalog Number 5908190 Country of Origin SE Gross Weight Per Pack 1.6000 lb Item Group 480 Material Steel Maximum Workpiece Diameter 5.906 in Minimum Hole Diameter 2.953 in Series CoroCut® 1-2 Through Coolant [Yes|No] No Toolholder Type RF123L15 UPC 11 69826253275 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123L2-0800-0008-TF Insert Seat Size L Overall Length 5.906 in Screw Type Socket Head Cap Shank Size 0.984 in H x 0.984 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 39 mm minimum overhang 22 mm width to cutting item reference point 4.6 Nm torque 2 axial groove support direction 25 mm W shank 26 mm W functiona ANSI Code: RF123L15-2525B-075BM ISO Code: RF123L15-2525B-075BM
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123L15-2525B-075BM |
| Catalog Number | 5908190 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.6000 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 5.906 in |
| Minimum Hole Diameter | 2.953 in |
| Series | CoroCut® 1-2 |
| Through Coolant [Yes|No] | No |
| Toolholder Type | RF123L15 |
| UPC 11 | 69826253275 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123L2-0800-0008-TF |
| Insert Seat Size | L |
| Overall Length | 5.906 in |
| Screw Type | Socket Head Cap |
| Shank Size | 0.984 in H x 0.984 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 39 mm minimum overhang |
| 22 mm width to cutting item reference point |
| 4.6 Nm torque |
| 2 axial groove support direction |
| 25 mm W shank |
| 26 mm W functiona |
| ANSI Code: RF123L15-2525B-075BM |
| ISO Code: RF123L15-2525B-075BM |
