Sandvik Coromant

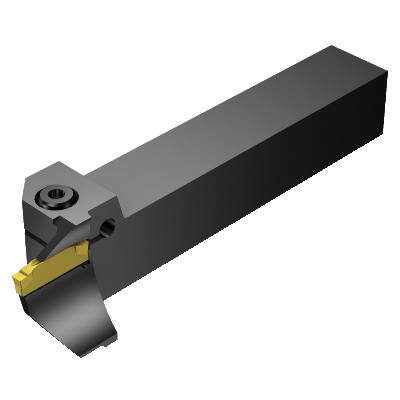

Sandvik Coromant 5908151 CoroCut® 1-2, Right Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5908151 CoroCut® 1-2, Right Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1245865
MFGR #5908151
Your Cost: $336.83/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G13-2020B-090B, 4.9212 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, G Insert Seat, Right Hand Cutting, 3.5433 in ID x 3.7795 to 12.3622 in OD Groove Width, 6.299 in Inscribed Circle, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G13-2020B-090B, 4.9212 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, G Insert Seat, Right Hand Cutting, 3.5433 in ID x 3.7795 to 12.3622 in OD Groove Width, 6.299 in Inscribed Circle, Steel
Alternate Catalog Number RF123G13-2020B-090B Catalog Number 5908151 Country of Origin SE Gross Weight Per Pack 0.8800 lb Item Group 480 Material Steel Maximum Workpiece Diameter 6.299 in Minimum Hole Diameter 3.543 in Series CoroCut® 1-2 Through Coolant [Yes|No] No Toolholder Type RF123G13 UPC 11 69826253242 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 4.921 in Screw Type Socket Head Cap Shank Size 0.787 in H x 0.787 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Without coolant entry No coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 33 mm minimum overhang 19.5 mm width to cutting item reference point 2.9 Nm torque 2 axial groove support direction 20 mm W shank 21 mm W functiona ANSI Code: RF123G13-2020B-090B ISO Code: RF123G13-2020B-090B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123G13-2020B-090B |
| Catalog Number | 5908151 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.8800 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 6.299 in |
| Minimum Hole Diameter | 3.543 in |
| Series | CoroCut® 1-2 |
| Through Coolant [Yes|No] | No |
| Toolholder Type | RF123G13 |
| UPC 11 | 69826253242 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 4.921 in |
| Screw Type | Socket Head Cap |
| Shank Size | 0.787 in H x 0.787 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Without coolant entry |
| No coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 33 mm minimum overhang |
| 19.5 mm width to cutting item reference point |
| 2.9 Nm torque |
| 2 axial groove support direction |
| 20 mm W shank |
| 21 mm W functiona |
| ANSI Code: RF123G13-2020B-090B |
| ISO Code: RF123G13-2020B-090B |
