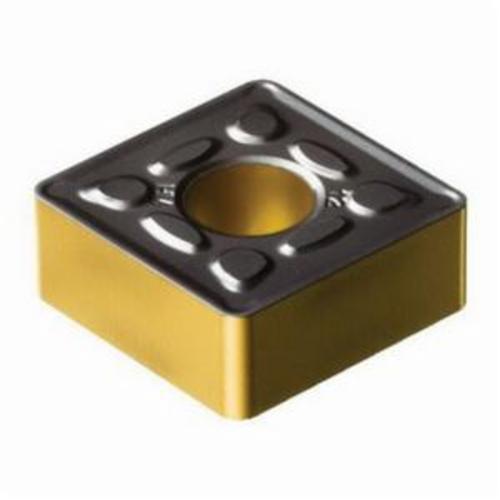

Sandvik Coromant 5908008 T-Max® P 2-Sided Turning Insert, SNMG 646-HM 4225, S-Square, SNMG-HM Insert, 4225, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 5908008 T-Max® P 2-Sided Turning Insert, SNMG 646-HM 4225, S-Square, SNMG-HM Insert, 4225, Carbide
SKU1239763
MFGR #5908008
Your Cost: $30.45/ea
List: T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
ANSI Code SNMG 646-HM 4225 Catalog Number 5908008 Corner Radius 0.0937 in Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.0600 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 24-HM 4225 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826264010 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker HM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/4 in Insert Size 646 Insert Style SNMG Manufacturer's Grade 4225 Material Carbide Material Grade K, P Maximum Depth of Cut 10 mm Rake Negative Seat Size 19 Shape Square 0 deg major clearance E cutting edge condition 8 cutting edges Straight hole and non-flat surface clamping interface 19 mm L effective cutting edge M tolerance class 0.3 - 1.2 mm/r cutting feed 40 life cycle state Negative basic shape inserts for high-performance turning Double sided inserts with strong edges Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility Precision nozzles and optimized geometries for high precision coolant machining Dedicated grades and geometries for all applications and materials Productive solution with wiper and Xcel technologies Tools featuring high precision coolant for excellent chip breaking Reliable and secure machining, even in roughing applications Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SNMG 646-HM 4225 |
| Catalog Number | 5908008 |
| Corner Radius | 0.0937 in |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 24-HM 4225 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826264010 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | HM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 646 |
| Insert Style | SNMG |
| Manufacturer's Grade | 4225 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 10 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| 0 deg major clearance |
| E cutting edge condition |
| 8 cutting edges |
| Straight hole and non-flat surface clamping interface |
| 19 mm L effective cutting edge |
| M tolerance class |
| 0.3 - 1.2 mm/r cutting feed |
| 40 life cycle state |
| Negative basic shape inserts for high-performance turning |
| Double sided inserts with strong edges |
| Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility |
| Precision nozzles and optimized geometries for high precision coolant machining |
| Dedicated grades and geometries for all applications and materials |
| Productive solution with wiper and Xcel technologies |
| Tools featuring high precision coolant for excellent chip breaking |
| Reliable and secure machining, even in roughing applications |
| Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling |
