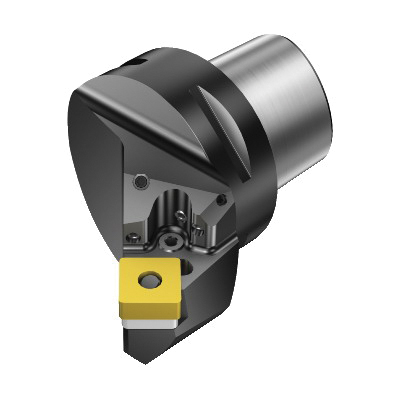

Sandvik Coromant 5907966 T-Max® P Turning Cutting Unit, 5.3669 in OAL, Right Hand, SNMG 120408 Insert
Modular Turning/Profiling Cutting Heads
1241169
MFG #: 5907966
Sandvik Coromant
701.35000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.3669 in Overall Length, S-Shape Insert, Insert Compatibility: SNMG 120408, Right Hand Cutting, Steel
- Features
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 80 mm Dia connection |
| 200 - 260 mm Dia minimum bore |
| 45 deg cutting edge |
| 0 deg inclination |
| 88.32 mm L protruding |
| 0 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 80 mm maximum overhang |
| 45 deg lead |
| -8 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C8-PSSNR-55080-12HP |
