Sandvik Coromant

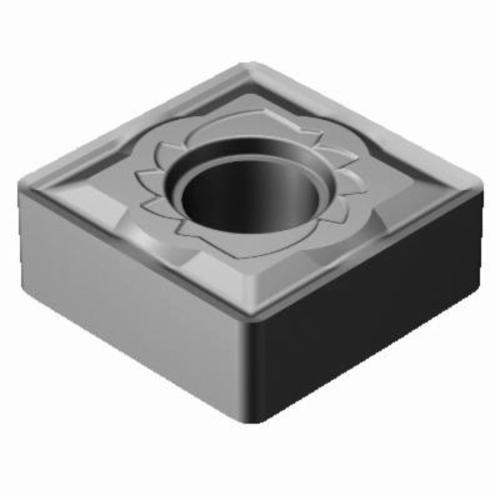

Sandvik Coromant 5906830 T-Max® P Negative Basic Shape Turning Insert, SNMG 544-SM H13A, S-Square, SNMG Insert, H13A
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5906830 T-Max® P Negative Basic Shape Turning Insert, SNMG 544-SM H13A, S-Square, SNMG Insert, H13A
SKU1238642
MFGR #5906830
Your Cost: $15.12/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, SM Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: SNMG 544-SM H13A, ISO Code: SNMG 15 06 16-SM H13A, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, SM Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: SNMG 544-SM H13A, ISO Code: SNMG 15 06 16-SM H13A, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, Uncoated, Material Grade: S
ANSI Code SNMG 544-SM H13A Catalog Number 5906830 Corner Radius 0.0624 in Country of Origin SE Finish Uncoated Gross Weight Per Pack 0.5000 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMG 15 06 16-SM H13A Length 5/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826253516 Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 5/8 in Insert Size 544 Insert Style SNMG Manufacturer's Grade H13A Material Carbide Material Grade M, S Maximum Depth of Cut 8 mm Rake Negative Seat Size 15 Shape Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.45 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMG 544-SM H13A |
| Catalog Number | 5906830 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.5000 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 15 06 16-SM H13A |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826253516 |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | SNMG |
| Manufacturer's Grade | H13A |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 8 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.45 mm/r cutting feed |
| 20 life cycle state |
