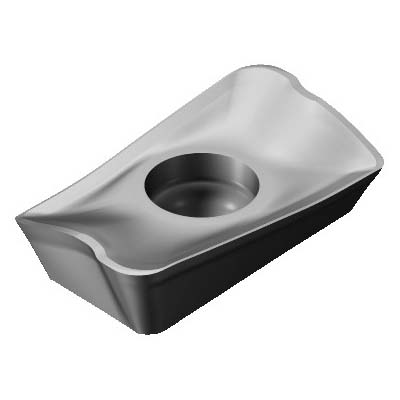

Sandvik Coromant 5888550 CoroMill® 390 Milling Insert, R390-17 04 24E-MM 1040, L-Rectangle, R390..E-MM Insert, Carbide, 1040, R390-17 04 24E-MM 1040
Custom_Product_Images_Illustration
Sandvik Coromant 5888550 CoroMill® 390 Milling Insert, R390-17 04 24E-MM 1040, L-Rectangle, R390..E-MM Insert, Carbide, 1040, R390-17 04 24E-MM 1040
SKU1234627
MFGR #5888550
Your Cost: $33.30/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-MM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, MM Chipbreaker, 0.094 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R390-17 04 24E-MM 1040, ISO Code: R390-17 04 24E-MM 1040, Right Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-MM Insert, L-Rectangle, 0.378 in Inscribed Circle, 0.1874 in Thickness, 0.378 in Width, 0.687 in Length, MM Chipbreaker, 0.094 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R390-17 04 24E-MM 1040, ISO Code: R390-17 04 24E-MM 1040, Right Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number R390-17 04 24E-MM 1040 ANSI Code R390-17 04 24E-MM 1040 Catalog Number 5888550 Corner Radius 0.094 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 0.1614 in Includes L - Rectangle ISO Code R390-17 04 24E-MM 1040 Item Group 350 Lead Angle 90 deg Length 0.687 in Material Application Stainless Steel Series CoroMill® 390 Thickness 0.1874 in Type 9.6 mm UPC 11 69826253411 Warranty 4.7625 mm Width 0.378 in Width UOM in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.378 in Insert Size 0.378 in Insert Style R390..E-MM Manufacturer's Grade 1040 Material Carbide Material Grade M Rake Positive Shape L-Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 19 deg clearance 15.7 mm D cutting 90 deg major cutting edge 15.7 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner F cutting edge condition 2 cutting edge Screw clamp mounting 0.08 to 0.2 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-17 04 24E-MM 1040 |
| ANSI Code | R390-17 04 24E-MM 1040 |
| Catalog Number | 5888550 |
| Corner Radius | 0.094 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1614 in |
| Includes | L - Rectangle |
| ISO Code | R390-17 04 24E-MM 1040 |
| Item Group | 350 |
| Lead Angle | 90 deg |
| Length | 0.687 in |
| Material Application | Stainless Steel |
| Series | CoroMill® 390 |
| Thickness | 0.1874 in |
| Type | 9.6 mm |
| UPC 11 | 69826253411 |
| Warranty | 4.7625 mm |
| Width | 0.378 in |
| Width UOM | in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.378 in |
| Insert Size | 0.378 in |
| Insert Style | R390..E-MM |
| Manufacturer's Grade | 1040 |
| Material | Carbide |
| Material Grade | M |
| Rake | Positive |
| Shape | L-Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 19 deg clearance |
| 15.7 mm D cutting |
| 90 deg major cutting edge |
| 15.7 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| F cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.2 mm/r cutting feed |
