Sandvik Coromant

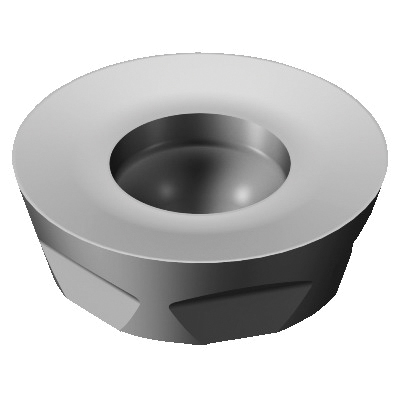

Sandvik Coromant 5888530 CoroMill® 300 Milling Insert, R300-2570E-ML 1040, R-Round, R300..E-ML (INCH) Insert, Carbide, 1040, R300-2570E-ML 1040
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5888530 CoroMill® 300 Milling Insert, R300-2570E-ML 1040, R-Round, R300..E-ML (INCH) Insert, Carbide, 1040, R300-2570E-ML 1040
SKU1229200
MFGR #5888530
Your Cost: $38.34/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-ML (INCH) Insert, R-Round, 1 in Inscribed Circle, 5/16 in Thickness, ML Chipbreaker, 1/2 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.2992 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R300-2570E-ML 1040, ISO Code: R300-2570E-ML 1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-ML (INCH) Insert, R-Round, 1 in Inscribed Circle, 5/16 in Thickness, ML Chipbreaker, 1/2 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.2992 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R300-2570E-ML 1040, ISO Code: R300-2570E-ML 1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
ANSI Code R300-2570E-ML 1040 Catalog Number 5888530 Corner Radius 1/2 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 0.0900 lb Hand of Insert Neutral Hole Diameter 0.2992 in ISO Code R300-2570E-ML 1040 Lead Angle 0 deg Length 7.6 mm Material Application Stainless Steel Series CoroMill® 300 Thickness 5/16 in Type 12.7 mm Width 25.4 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker ML Inscribed Circle 1 in Insert Size M Insert Style R300..E-ML (INCH) Manufacturer's Grade 1040 Material Carbide Material Grade M Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 3.72 mm D cutting 1-side cutting 20 life cycle state 8 corner F cutting edge condition 8 cutting edge Screw clamp mounting 0.05 to 0.4 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | R300-2570E-ML 1040 |
| Catalog Number | 5888530 |
| Corner Radius | 1/2 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0900 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2992 in |
| ISO Code | R300-2570E-ML 1040 |
| Lead Angle | 0 deg |
| Length | 7.6 mm |
| Material Application | Stainless Steel |
| Series | CoroMill® 300 |
| Thickness | 5/16 in |
| Type | 12.7 mm |
| Width | 25.4 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | ML |
| Inscribed Circle | 1 in |
| Insert Size | M |
| Insert Style | R300..E-ML (INCH) |
| Manufacturer's Grade | 1040 |
| Material | Carbide |
| Material Grade | M |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 3.72 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 8 corner |
| F cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.4 mm/r cutting feed |
