Sandvik Coromant

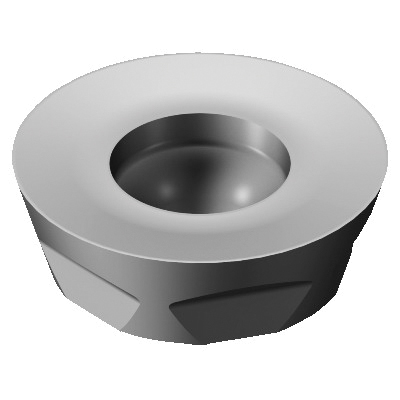

Sandvik Coromant 5888516 CoroMill® 300 Milling Insert, R300-1032E-MM 1040, R-Round, R300..E-MM Insert, Carbide, 1040, R300-1032E-MM 1040
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5888516 CoroMill® 300 Milling Insert, R300-1032E-MM 1040, R-Round, R300..E-MM Insert, Carbide, 1040, R300-1032E-MM 1040
SKU1250815
MFGR #5888516
Your Cost: $15.13/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-MM Insert, R-Round, 0.3937 in Inscribed Circle, 1/8 in Thickness, MM Chipbreaker, 0.1968 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1732 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R300-1032E-MM 1040, ISO Code: R300-1032E-MM 1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..E-MM Insert, R-Round, 0.3937 in Inscribed Circle, 1/8 in Thickness, MM Chipbreaker, 0.1968 in Corner Radius, Positive Rake, 0 deg Lead Angle, 0.1732 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R300-1032E-MM 1040, ISO Code: R300-1032E-MM 1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Alternate Catalog Number R300-1032E-MM 1040 ANSI Code R300-1032E-MM 1040 Catalog Number 5888516 Corner Radius 0.1968 in Country of Origin US Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 0.1732 in Included Angle R - Round ISO Code R300-1032E-MM 1040 Item Group 350 Lead Angle 0 deg Length M Material Application Stainless Steel Series CoroMill® 300 Thickness 1/8 in Type Positive UPC 11 69826253356 Width 3.175 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MM Inscribed Circle 0.3937 in Insert Size 4.4 mm Insert Style R300..E-MM Manufacturer's Grade 1040 Material Carbide Material Grade M Rake Positive Shape R-Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 2.5 mm D cutting 1-side cutting 20 life cycle state 6 corner E cutting edge condition 6 cutting edge Screw clamp mounting 0.05 to 0.35 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R300-1032E-MM 1040 |
| ANSI Code | R300-1032E-MM 1040 |
| Catalog Number | 5888516 |
| Corner Radius | 0.1968 in |
| Country of Origin | US |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1732 in |
| Included Angle | R - Round |
| ISO Code | R300-1032E-MM 1040 |
| Item Group | 350 |
| Lead Angle | 0 deg |
| Length | M |
| Material Application | Stainless Steel |
| Series | CoroMill® 300 |
| Thickness | 1/8 in |
| Type | Positive |
| UPC 11 | 69826253356 |
| Width | 3.175 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MM |
| Inscribed Circle | 0.3937 in |
| Insert Size | 4.4 mm |
| Insert Style | R300..E-MM |
| Manufacturer's Grade | 1040 |
| Material | Carbide |
| Material Grade | M |
| Rake | Positive |
| Shape | R-Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 2.5 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| E cutting edge condition |
| 6 cutting edge |
| Screw clamp mounting |
| 0.05 to 0.35 mm/r cutting feed |
