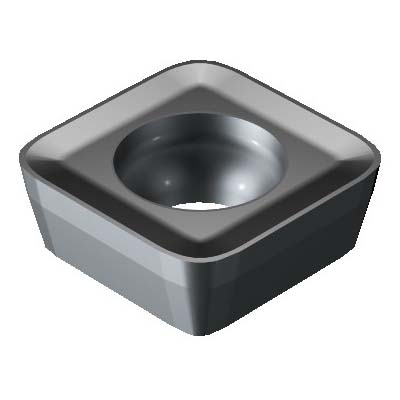

Sandvik Coromant 5888507 CoroMill® 210 Milling Insert, R210-09 04 14E-MM 1040 ANSI, S-Square, R210..E-MM Insert, Carbide, 1040
R210 Milling Inserts
1233254
MFG #: 5888507
Sandvik Coromant
22.00000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..E-MM Insert, S-Square, 0.374 in Inscribed Circle, 0.1771 in Thickness, 1/2 in Length, MM Chipbreaker, 0.0551 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.1653 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R210-09 04 14E-MM 1040, ISO Code: R210-09 04 14E-MM 1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1 mm D cutting |
| 0.66 mm L wiper edge |
| 50 mm wiper edge radius |
| 90 deg included |
| 10 deg major cutting edge |
| 5.77 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
