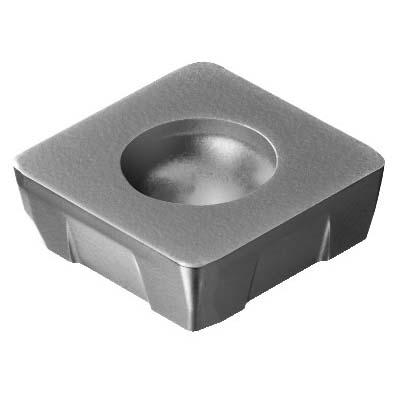

Sandvik Coromant 5888506 CoroMill® 210 Milling Insert, R210-09 04 12M-MM 1040, S-Square, R210..M-MM Insert, Carbide, 1040, R210-09 04 12M-MM 1040
R210 Milling Inserts
1233269
MFG #: 5888506
Sandvik Coromant
17.26000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 210, R210..M-MM Insert, S-Square, 0.37 in Inscribed Circle, 0.1574 in Thickness, 0.37 in Length, MM Chipbreaker, 0.0393 in Corner Radius, Positive Rake, 80 deg Lead Angle, 0.1653 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: R210-09 04 12M-MM 1040, ISO Code: R210-09 04 12M-MM 1040, Right Hand, Carbide, PVD Coated, Material Grade: M
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.1 mm D cutting |
| 0.77 mm L wiper edge |
| 90 deg included |
| 10 deg major cutting edge |
| 6.2 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
