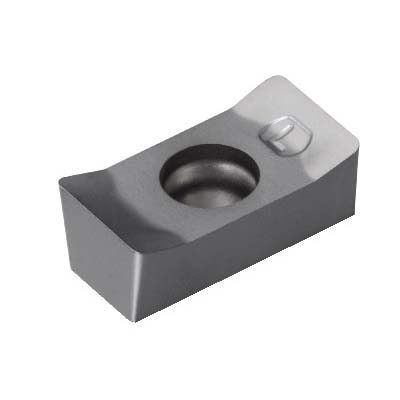

Sandvik Coromant 5888500 CoroMill® 331 Slotting Insert, N331.1A-08 45 08H-ML1040, L-Rectangle, N331.1A..H-ML Insert, Carbide, 1040, N331.1A-08 45 08H-ML1040
Custom_Product_Images_Illustration
Sandvik Coromant 5888500 CoroMill® 331 Slotting Insert, N331.1A-08 45 08H-ML1040, L-Rectangle, N331.1A..H-ML Insert, Carbide, 1040, N331.1A-08 45 08H-ML1040
SKU1249896
MFGR #5888500
Your Cost: $17.99/ea
List: Sandvik Coromant Slotting Insert, Series: CoroMill® 331, N331.1A..H-ML Insert, L-Rectangle, 0.374 in Inscribed Circle, 0.1751 in Thickness, 0.374 in Width, 0.3346 in Length, ML Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1417 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: N331.1A-08 45 08H-ML1040, ISO Code: N331.1A-08 45 08H-ML1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
Sandvik Coromant Slotting Insert, Series: CoroMill® 331, N331.1A..H-ML Insert, L-Rectangle, 0.374 in Inscribed Circle, 0.1751 in Thickness, 0.374 in Width, 0.3346 in Length, ML Chipbreaker, 0.0314 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1417 in Hole Dia, Manufacturer's Grade: 1040, ANSI Code: N331.1A-08 45 08H-ML1040, ISO Code: N331.1A-08 45 08H-ML1040, Neutral Hand, Carbide, PVD Coated, Material Grade: M
ANSI Code N331.1A-08 45 08H-ML1040 Catalog Number 5888500 Corner Radius 0.0314 in Country of Origin JP Finish PVD Coated Gross Weight Per Pack 0.0700 lb Hand of Insert Neutral Hole Diameter 0.1417 in ISO Code N331.1A-08 45 08H-ML1040 Lead Angle 90 deg Length 0.3346 in Material Application Stainless Steel Relief Angle 4.45 mm Series CoroMill® 331 Thickness 0.1751 in Type 8.5 mm UPC 11 69826253163 Warranty 9.5 mm Width 0.374 in Width UOM IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker ML Inscribed Circle 0.374 in Insert Size 0.374 in Insert Style N331.1A..H-ML Manufacturer's Grade 1040 Material Carbide Material Grade M Rake Positive Shape L-Rectangle 0 deg clearance 20 life cycle state 7.7 mm D max cutting 1.2 mm L wiper edge F cutting edge condition 4 edges Light operation 40 to 60 deg countersunk hole and non-flat surface 90 deg included 3 insert mounting style 90 deg cutting edge 7.7 mm L cutting edge effective 08 insert seat H tolerance class insert 0.08 to 0.22 mm/r cutting feed Screw clamp mounting style
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | N331.1A-08 45 08H-ML1040 |
| Catalog Number | 5888500 |
| Corner Radius | 0.0314 in |
| Country of Origin | JP |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0700 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1417 in |
| ISO Code | N331.1A-08 45 08H-ML1040 |
| Lead Angle | 90 deg |
| Length | 0.3346 in |
| Material Application | Stainless Steel |
| Relief Angle | 4.45 mm |
| Series | CoroMill® 331 |
| Thickness | 0.1751 in |
| Type | 8.5 mm |
| UPC 11 | 69826253163 |
| Warranty | 9.5 mm |
| Width | 0.374 in |
| Width UOM | IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | ML |
| Inscribed Circle | 0.374 in |
| Insert Size | 0.374 in |
| Insert Style | N331.1A..H-ML |
| Manufacturer's Grade | 1040 |
| Material | Carbide |
| Material Grade | M |
| Rake | Positive |
| Shape | L-Rectangle |
| 0 deg clearance |
| 20 life cycle state |
| 7.7 mm D max cutting |
| 1.2 mm L wiper edge |
| F cutting edge condition |
| 4 edges |
| Light operation |
| 40 to 60 deg countersunk hole and non-flat surface |
| 90 deg included |
| 3 insert mounting style |
| 90 deg cutting edge |
| 7.7 mm L cutting edge effective |
| 08 insert seat |
| H tolerance class insert |
| 0.08 to 0.22 mm/r cutting feed |
| Screw clamp mounting style |
