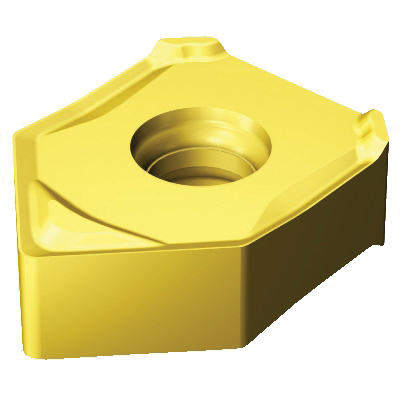

Sandvik Coromant 5861282 CoroMill® 345 Milling Insert, 345N-1305E-KW8 1020, S-Square, 345N-KW8 Insert, Carbide, 1020, 345N-1305E-KW8 1020
345N Milling Inserts
1242252
MFG #: 5861282
Sandvik Coromant
34.09000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® 345, 345N-KW8 Insert, S-Square, 0.5118 in Inscribed Circle, 0.2204 in Thickness, 0.5118 in Length, KW8 Chipbreaker, 0.0393 in Corner Radius, 22 deg Negative Rake, 45 deg Lead Angle, 0.1889 in Hole Dia, Manufacturer's Grade: 1020, ANSI Code: 345N-1305E-KW8 1020, ISO Code: 345N-1305E-KW8 1020, Neutral Hand, Carbide, PVD Coated, Material Grade: K
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 0 deg clearance |
| 6 mm D cutting |
| 8 mm L wiper edge |
| 500 mm wiper edge radius |
| 90 deg included |
| 45 deg major cutting edge |
| 8.8 mm L effective cutting edge |
| 2-side cutting |
| 20 life cycle state |
| 1 corner |
| T cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
