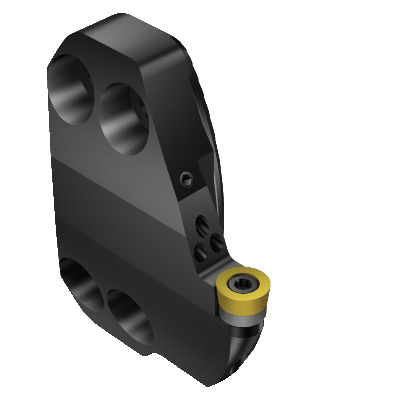

Sandvik Coromant 5857882 CoroTurn® 107 Turning Head, 0.6692 in, 0.9763 in OAL, Right Hand, Metric RCMT 10T3M0 Insert

Modular Turning/Profiling Cutting Heads
1238752 MFG #: 5857882
Sandvik Coromant
641.95000 / ea
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 0.6692 in Head Length/Projection, 0.9763 in Overall Length, R-Round Insert, Insert Compatibility: Metric RCMT 10T3M0, Right Hand Cutting, 2.2047 in Center to Cutting Edge, Steel
  • Features
Unobstructed chip flow|Excellent chip control|Exceptional surface finish
Axial concentric coolant entry
Axial inclined coolant exit
70 connection size
90 deg body workpiece side
ISO: metric RCMT 10T3M0 interface identifiers
30 bar coolant
120 - 260 mm Dia minimum bore
0 deg rake orthogonal
0 deg inclination
35 mm D cutting
17 mm maximum overhang
RCMT 10 T3 M0 master insert
3 Nm torque
12 mm length to cutting item reference point
70 mm W clamping
Spiral point tap style
10 mm insert seat
ANSI Code: SL70-SRDCR-35-10HP
ISO Code: SL70-SRDCR-35-10HP
