Sandvik Coromant

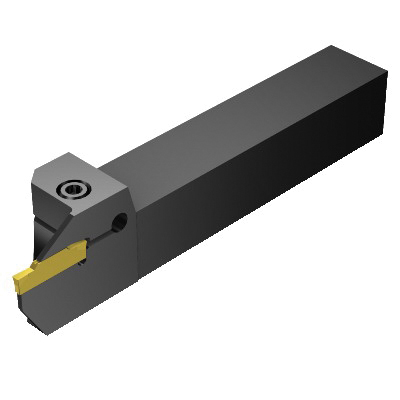

Sandvik Coromant 5856793 CoroCut® 1-2 Indexable Shank Tool, N123G2-0300-0003-TF insert, G Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5856793 CoroCut® 1-2 Indexable Shank Tool, N123G2-0300-0003-TF insert, G Insert Seat, Left Hand
SKU1252934
MFGR #5856793
Your Cost: $273.59/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, LF123G22-2020D, 4.9212 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, G Insert Seat, Left Hand Cutting, 0.8661 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, LF123G22-2020D, 4.9212 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, G Insert Seat, Left Hand Cutting, 0.8661 in Maximum Depth of Cut, Steel
Alternate Catalog Number LF123G22-2020D Catalog Number 5856793 Country of Origin SE Finish Rectangular Geometry LF123G22-2020D Gross Weight Per Pack 0.8800 lb Head Length 125 mm Includes Indexable Internal or External External Item Group 480 Material Steel Minimum Groove Width CoroCut® 1-2 Series CoroCut® 1-2 Shank Length N123G2-0300-CM Toolholder Type R/LF123..D Type Indexable UPC 11 69826251466 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 Cutting Direction Left Hand Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Maximum Depth of Cut 0.8661 in Overall Length 4.9212 in Screw Type 0.811 Shank Size 0.7874 in H x 0.7874 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 44 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 43 mm minimum overhang 5 Nm torque 0 deg inclination 0 deg rake ANSI Code: LF123G22-2020D ISO Code: LF123G22-2020D
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | LF123G22-2020D |
| Catalog Number | 5856793 |
| Country of Origin | SE |
| Finish | Rectangular |
| Geometry | LF123G22-2020D |
| Gross Weight Per Pack | 0.8800 lb |
| Head Length | 125 mm |
| Includes | Indexable |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Minimum Groove Width | CoroCut® 1-2 |
| Series | CoroCut® 1-2 |
| Shank Length | N123G2-0300-CM |
| Toolholder Type | R/LF123..D |
| Type | Indexable |
| UPC 11 | 69826251466 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Maximum Depth of Cut | 0.8661 in |
| Overall Length | 4.9212 in |
| Screw Type | 0.811 |
| Shank Size | 0.7874 in H x 0.7874 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 44 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 43 mm minimum overhang |
| 5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: LF123G22-2020D |
| ISO Code: LF123G22-2020D |
