Sandvik Coromant
Sandvik Coromant 5856786 CoroCut® 1-2 Indexable Shank Tool, N123G2-0300-0003-TF insert, G Insert Seat, Right Hand

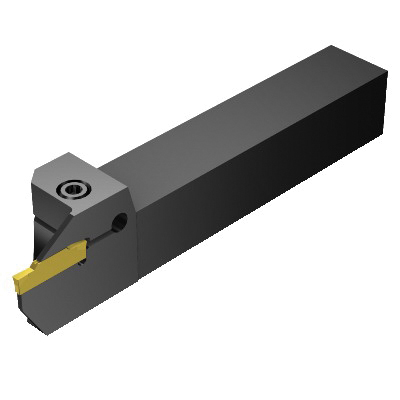

Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5856786 CoroCut® 1-2 Indexable Shank Tool, N123G2-0300-0003-TF insert, G Insert Seat, Right Hand
SKU1245909
MFGR #5856786
Your Cost: $273.59/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G22-2020D, 4.9212 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, G Insert Seat, Right Hand Cutting, 0.8661 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2, Insert Compatibility: N123G2-0300-0003-TF, RF123G22-2020D, 4.9212 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, G Insert Seat, Right Hand Cutting, 0.8661 in Maximum Depth of Cut, Steel
Alternate Catalog Number RF123G22-2020D Catalog Number 5856786 Country of Origin SE Gross Weight Per Pack 0.8800 lb Head Length 43 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 Toolholder Style R/LF123..D Toolholder Type R/LF123..D UPC 11 69826251730 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type Screw Cutting Direction Right Hand Insert Compatibility N123G2-0300- CM Insert Seat Size G Maximum Depth of Cut 22 mm Overall Length 125 mm Screw Type Socket Head Shank Size 20 mm H x 20 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 44 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 43 mm minimum overhang 5 Nm torque 0 deg inclination 0 deg rake ANSI Code: RF123G22-2020D ISO Code: RF123G22-2020D
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RF123G22-2020D |
| Catalog Number | 5856786 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.8800 lb |
| Head Length | 43 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 |
| Toolholder Style | R/LF123..D |
| Toolholder Type | R/LF123..D |
| UPC 11 | 69826251730 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | Screw |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123G2-0300- CM |
| Insert Seat Size | G |
| Maximum Depth of Cut | 22 mm |
| Overall Length | 125 mm |
| Screw Type | Socket Head |
| Shank Size | 20 mm H x 20 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 44 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 43 mm minimum overhang |
| 5 Nm torque |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: RF123G22-2020D |
| ISO Code: RF123G22-2020D |
